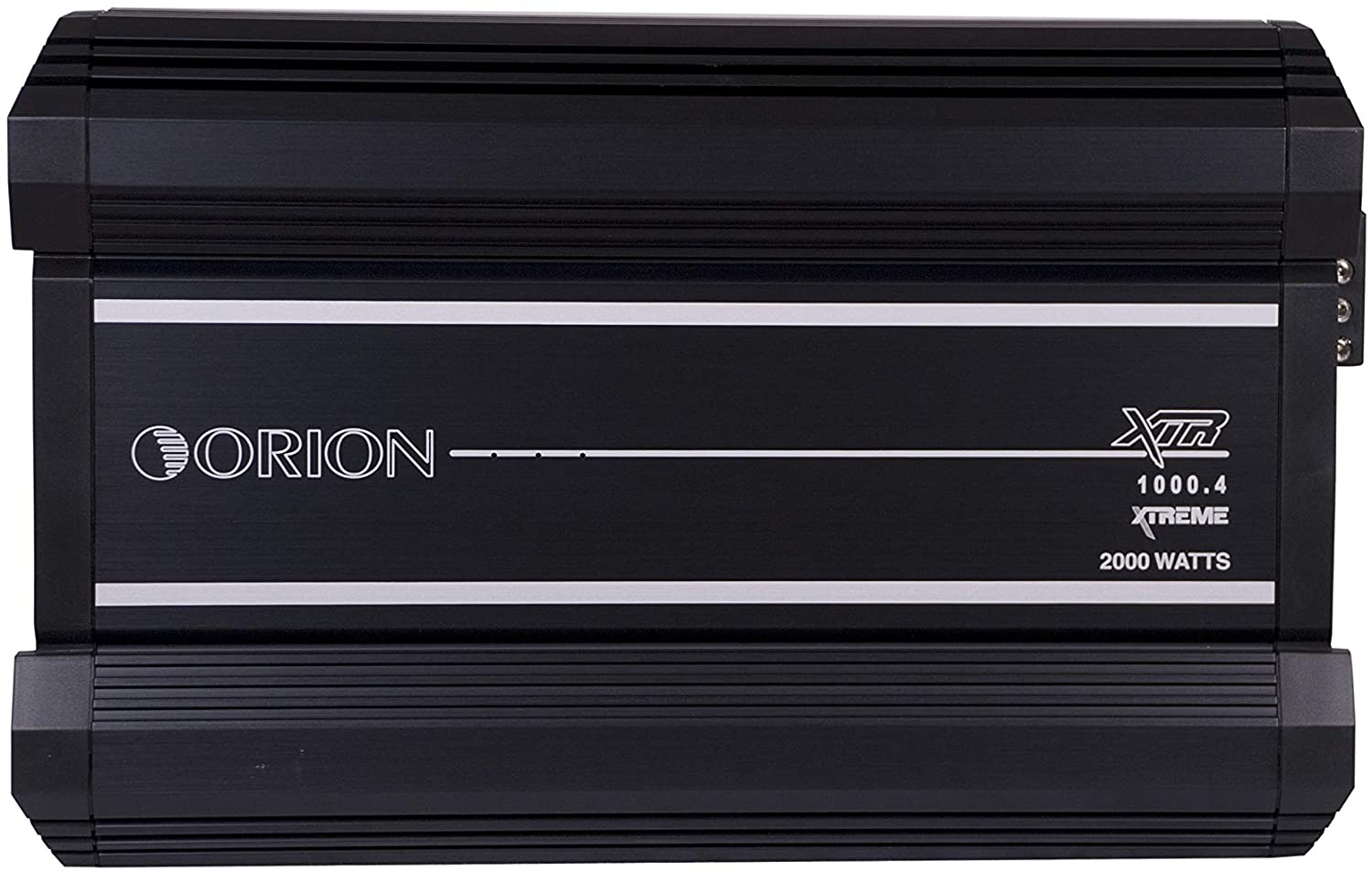

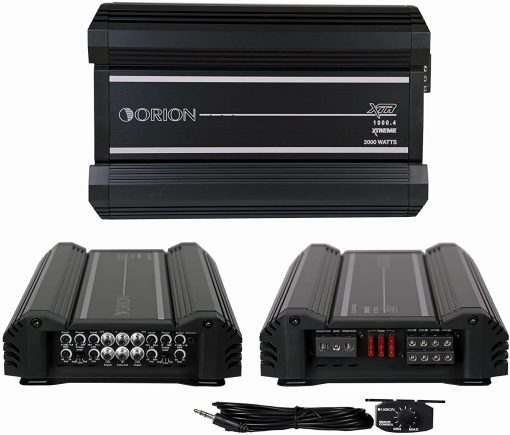

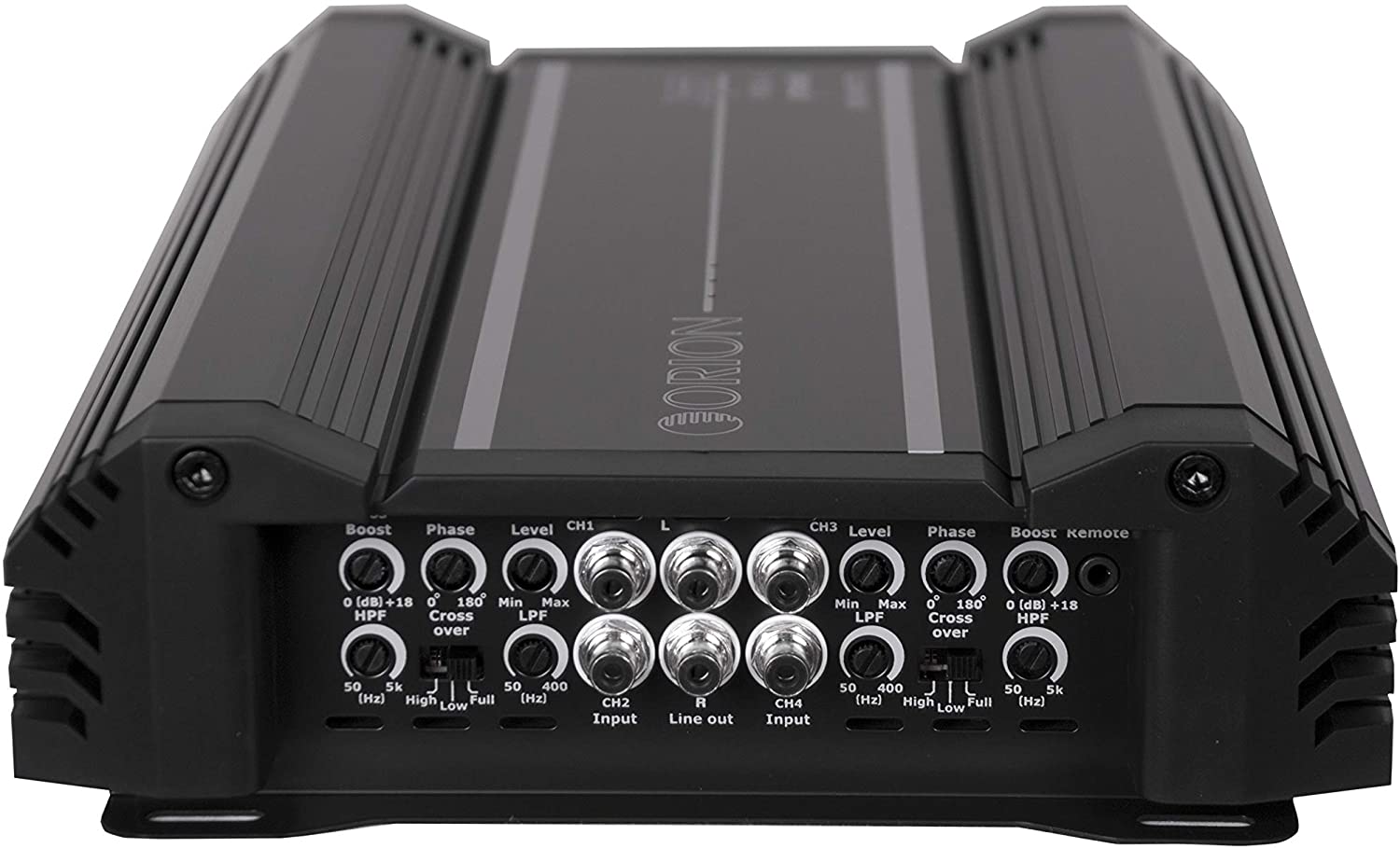

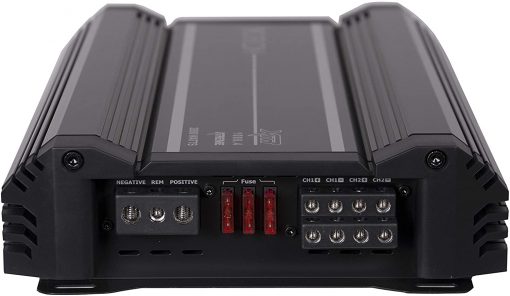

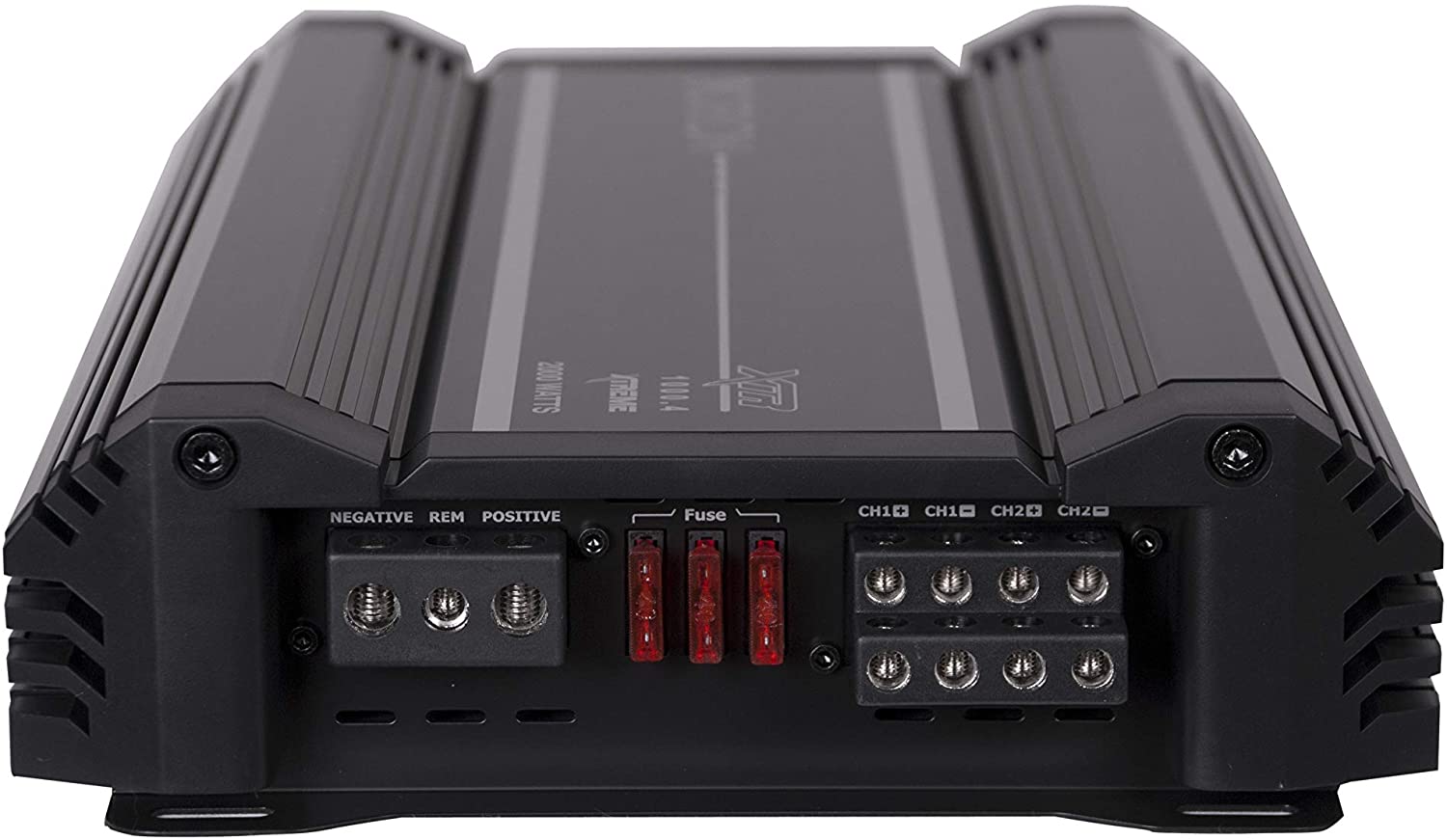

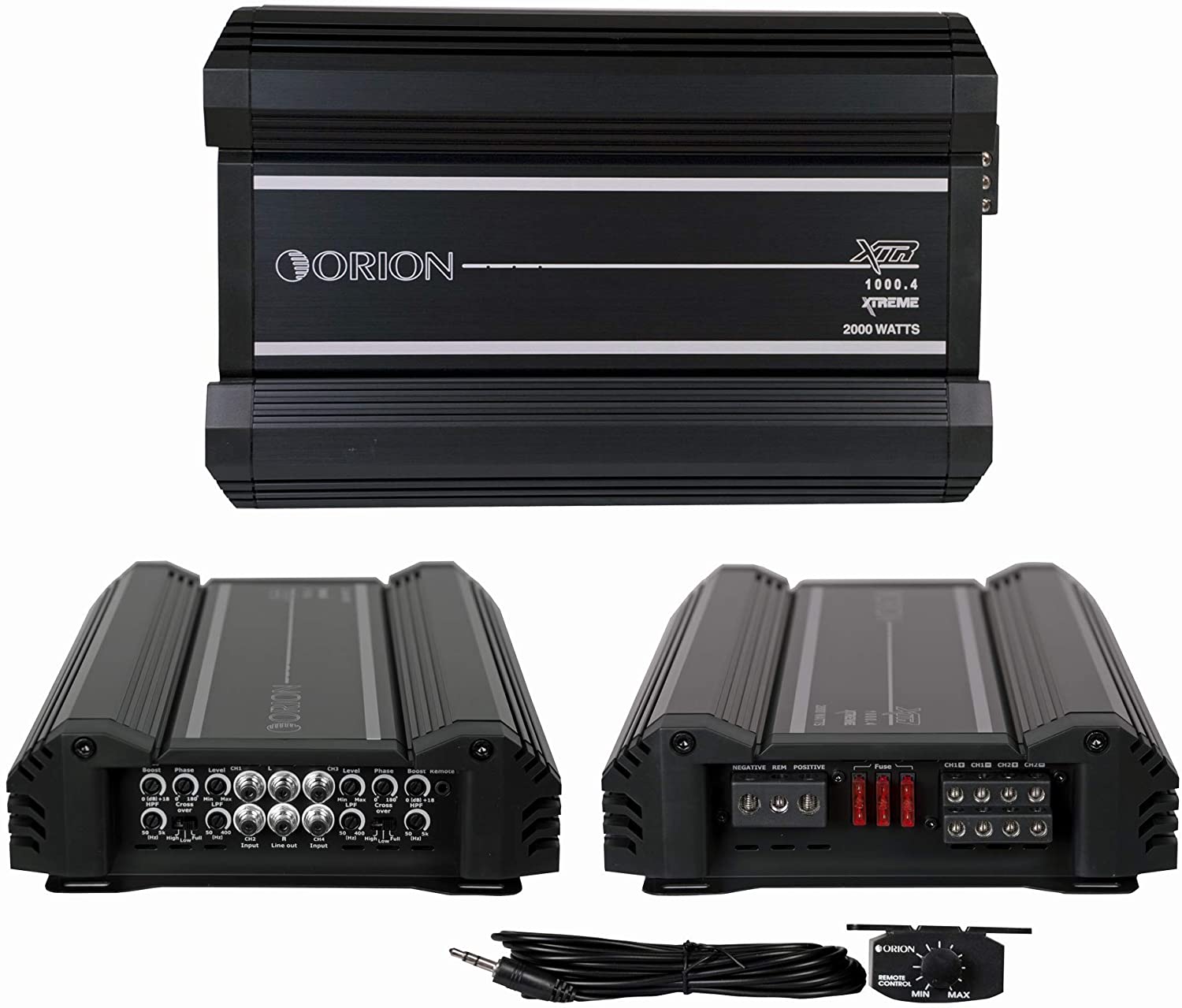

Four-channel car stereo audio amplifier with 165 Watts per channel, with built-in high-pass and low-pass 12dB/octave crossover and Bass Boost. * The XTR1000.4 is capable of 6, 5, 4, 3 or 2 channel operation with a maximum power capability of 1000 Watts RMS into two 4 Ohm Bridged Loads * Bass Boost (Channels 1 & 2 / 3 & 4) – continuously adjusts from 0 to 18dB of boost centered at 45Hz * Phase Shift Control (Channels 1 & 2 / 3 & 4) – Allows you to change the phase of your subwoofer from 0 to 180 degrees to help compensate for timing differences between drivers. * Level Control (Channels 1 & 2 / 3 & 4) – continuous adjustment for full power output * RCA Input (Channels 1 & 2 / 3 & 4) – accepts Low Level RCA Inputs (200mV-4V) from a head unit, preamplifier, or equalizer. * RCA Line Output – provides easy connection to additional ampl ifiers. Note that some OEM stereo headunits may sense the attached load and may turn off their speaker outputs if expected load conditions aren’t achieved * Remote Gain input – connects remote gain control to control the bass level from the driver’s seat. * High pass filter (Channels 1 & 2 / 3 & 4) – adjusts the frequency of the crossover for the HPF (High-Pass Frequency Control: 50Hz – 5kHz) * X-Over (cross-over Channels 1 & 2 / 3 & 4) – activates LPF (low pass crossover), Full (all pass), or HPF (high pass crossover) * Low pass filter (Channels 1 & 2 / 3 & 4) – adjusts the frequency of the crossover for the LPF (Low-Pass Frequency Control , 50Hz -400Hz) Power Output: 165 Watts RMS x 4 at 4 ohms and < 1% THD+N * Signal to Noise Ratio: >70 dBA (reference 1 Watt into 4 ohms) * Additional Power: 250 Watts RMS x 4 at 2 ohm and < 1% THD+N * Power Output 4 Ohms (Watts / RMS) ** 165 x 4 * Power Output 2 Ohms (Watts / RMS) *** 250 x 4 * Power Output 4 Ohms (Watts / RMS) Bridged 500 x 2 * Nominal Power Output 4 Ohms (Watts) Bridged 2000 Watts * MAX Peak Music Power 4000 Watts * Amplifier Efficiency > 60% into 2 Ohms load at max . power * Signal to Noise ratio at rated output power and lowest impedance >95dB * Externally Bridgeable No * Distortion at Rated Power 0.05% THD+N * Frequency Response 20Hz to 35kHz +/- 1dB * Linear Bandwidth 20Hz to 65kHz +/- 3dB * Damping Factor > 100 * Input Sensitivity (rms) 200mV to 4V * Supply Voltage Range 9 to 16V * Protection Thermal, DC offset, reverse polarity, short protection, under-voltage, over-voltage * Terminal Wire Gauge size recommendations for typical vehicular installation: Power 4 AWG Remote 10 AWG Ground 4 AWG Speaker 10 AWG Unit Size: 14.3-in x 9.3-in x 2.5-in height Box size: 17-in x 4.75 x 12-in * Continuous 4 Ohm load 20Hz to 20kHz, < 1% THD, with input voltage at 14.4 VDC. * Continuous 2 Ohm load 20Hz to 20kHz, < 1% THD, with input voltage at 14.4 VDC. RMS Power Rating: 4 Ohms: 165 Watts x 4 chan. 2 Ohms: 250 Watts x 4 chan. Bridged, 4 Ohms: 500 Watts x 2 chan. Fuses: 3 x 40A #72,539 in Electronics (See Top 100 in Electronics)#177 in Car Multichannel Amplifiers 13-Jun-13 0 FALSE Orion 18 x 10 x 4 inches
