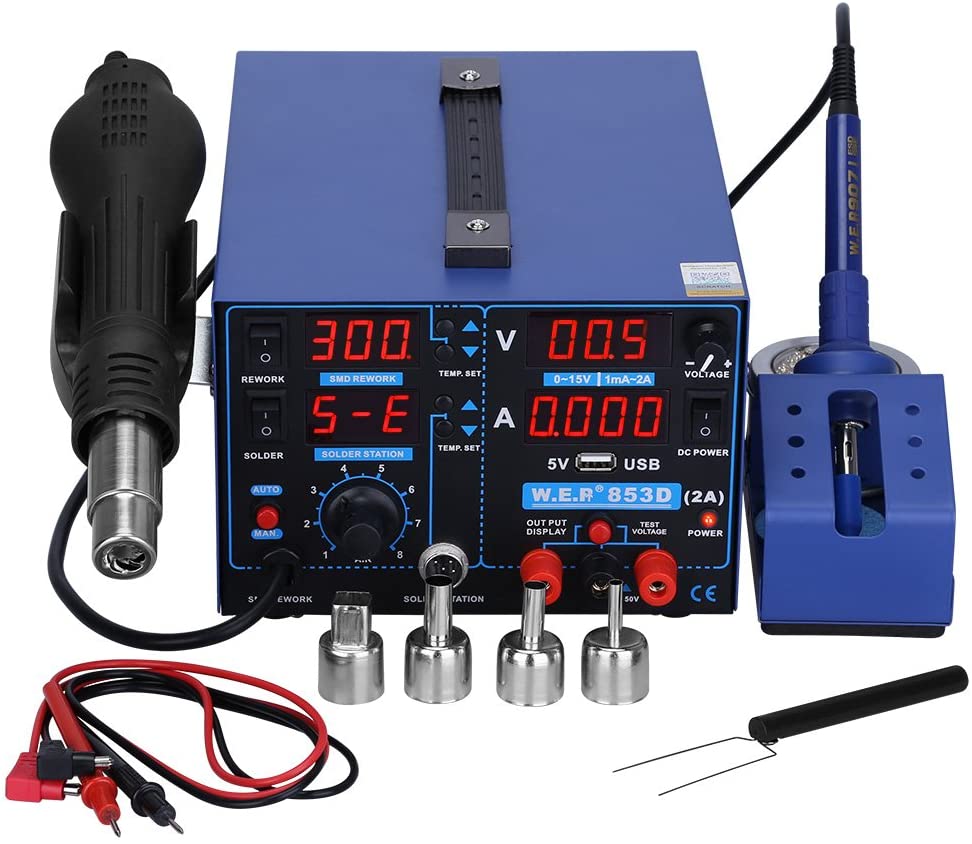

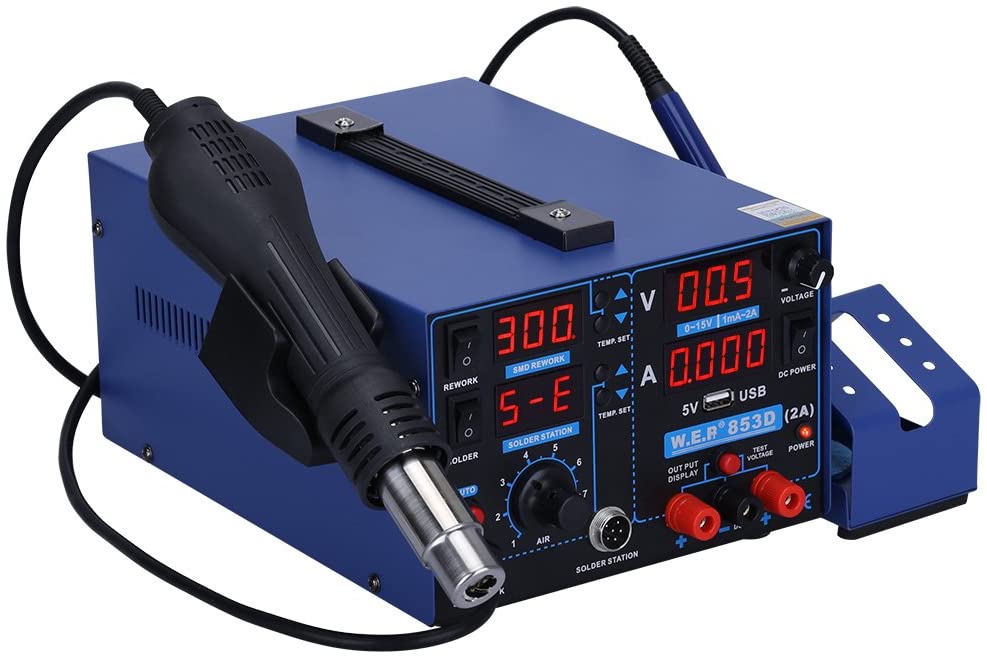

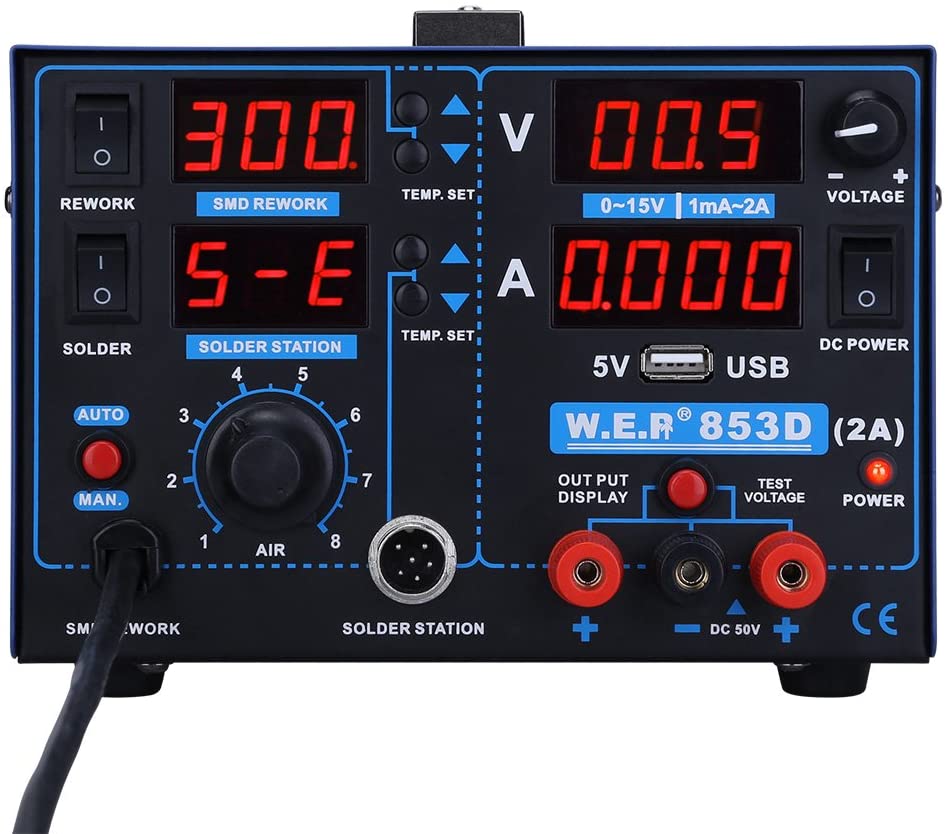

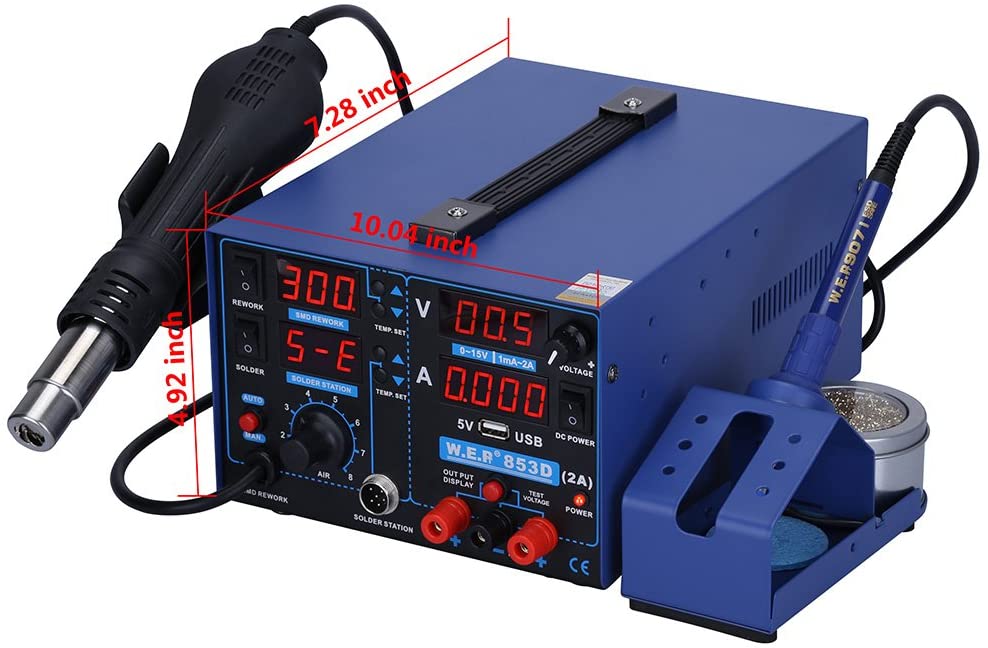

Size:765WKEDSUM 3 in 1 853D Digital Display Lead-Free Soldering Station Based on the Company’s revolutionary, innovative design and meeting existing demands of the communication market, this three-in-one machine uses the latest chip technology and integrates a power supply, hot air gun and soldering station! Hot air gun and soldering iron with dual LED the most intuitive display their work temperature. PID progress precise control temperature, LED precise temperature, power supply part :Voltage used LED display and current used gauge needles. With the most advanced automatic short-circuit recovery protection. Specifications: 1. Machine Parameters Model:853D Dimension: L 253 x W 186 x H125 mm±5 mm Weight: About 4.06KG 2. Hot Air Gun Output Power:700W Temperature Range: 100-480 degree Air Supply Mode: Brushless-Motor Fan Airflow:120L/min (MAX.) Display Mode: LED Digital Display Temperature Stability: ±1 degree(Static) 3. Soldering Iron Output Power:45W Temperature Range:200-480 degree Display Mode: LED Digital Display Temperature Stability: ±2 degree(Static) Tip-to-Ground Impedance: ?2 ohm Tip-to-Ground Voltage:?2mv High quality metal heater 4.Power Supply: Operating Voltage:1-15V Operating Current: 0-1A/0-2A/0-3A Protection Mode :Short Circuit Over Current Voltage Display Mode: LED Digital Display Current Display Mode: Pointer Display Load Stability : ?0.01 ± 2mv Ripple and Noise: ?1 mvrms(RMS) Package Includes: 1x Soldering Station 1x Hot Air Gun 1 x Soldering Iron 1 x Hot Air Gun Stand 1 x Iron Stand 4 x Nozzles 1 x Power Cable 1 x IC Puller 1x DC Probe Cable 1 x Manual
Make sure this fitsby entering your model number.
The whole part :Use the double-panel patch technology, which results more stable, with the latest technology PID program temperature control system.
