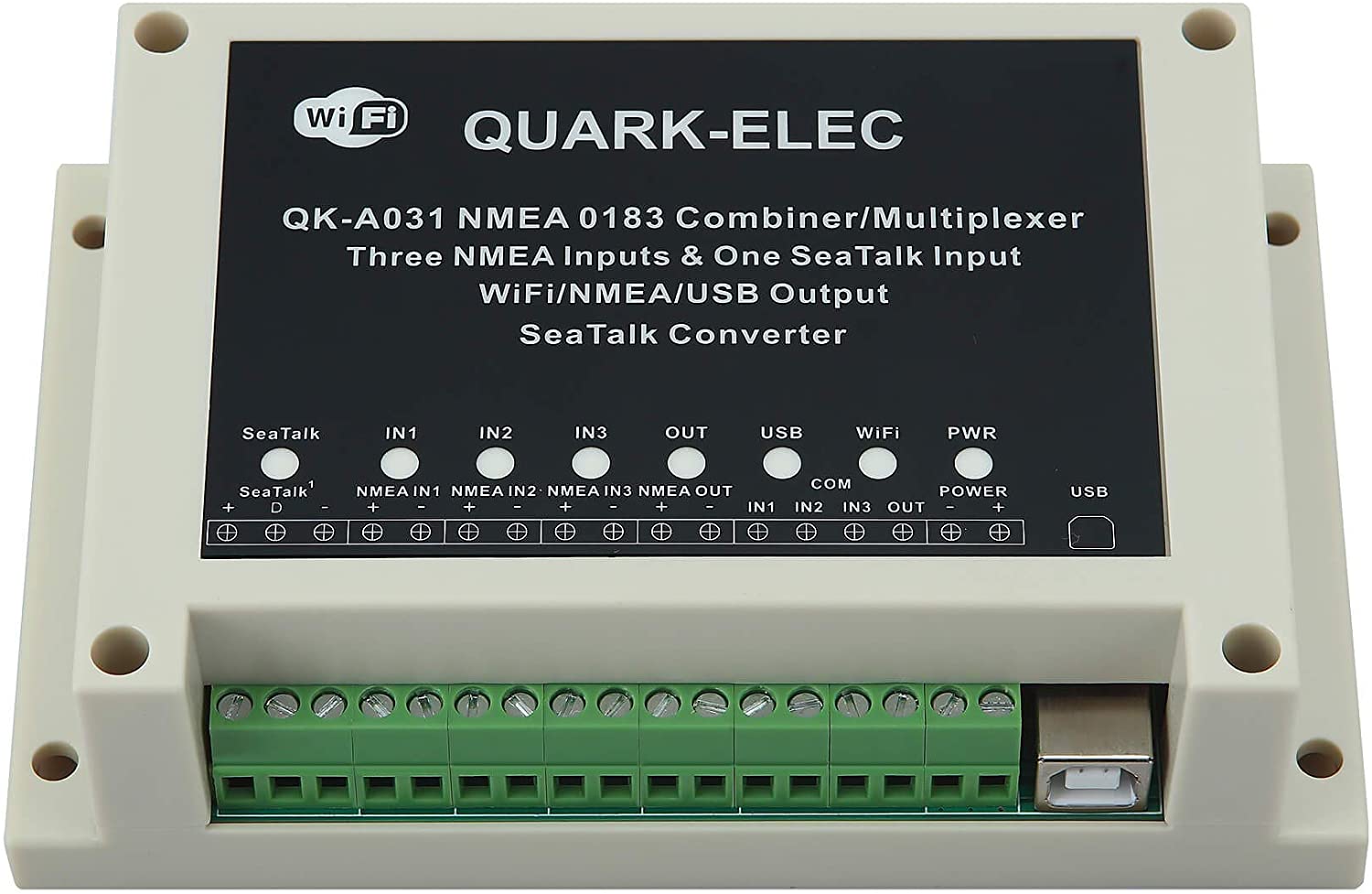

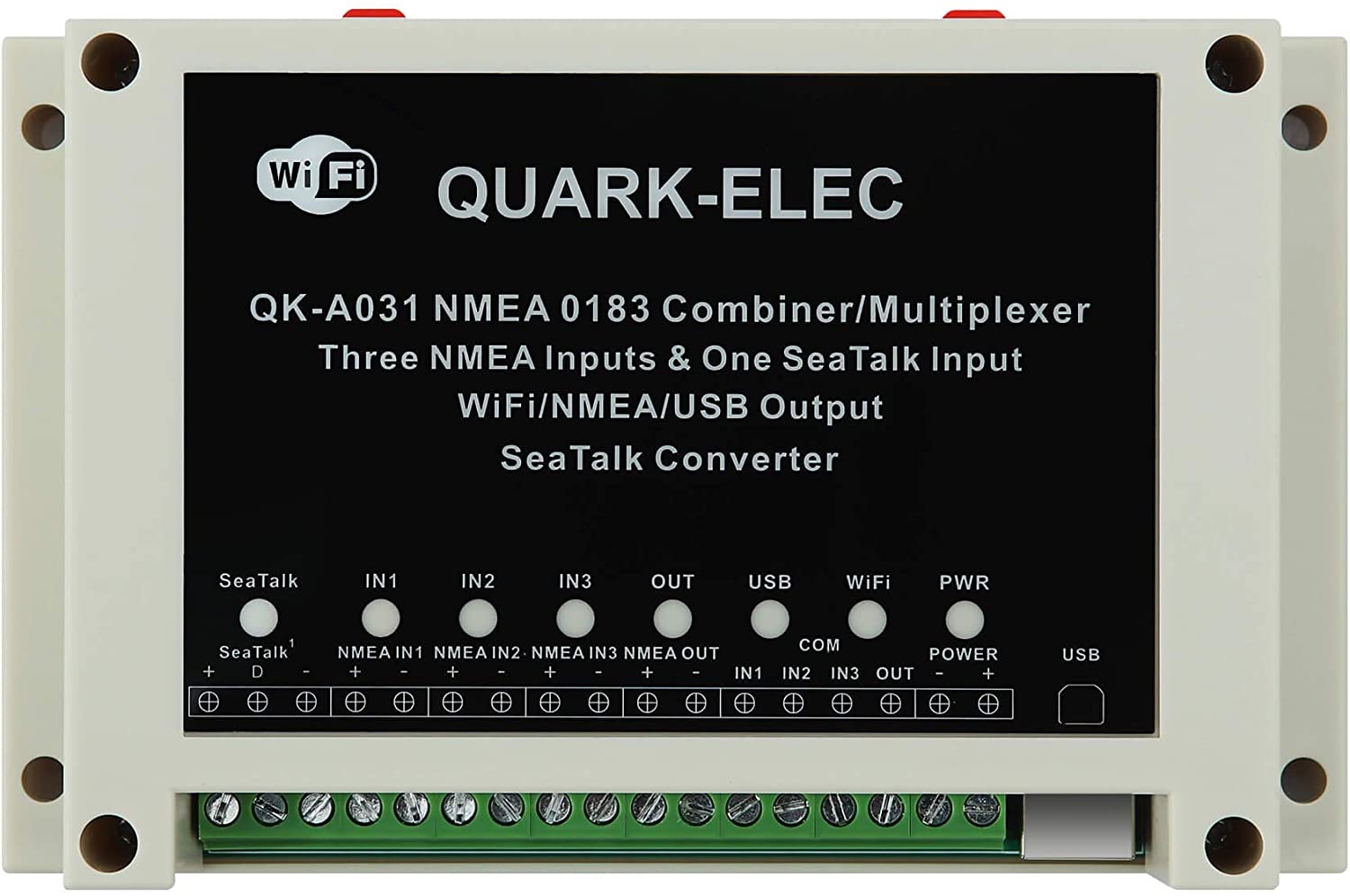

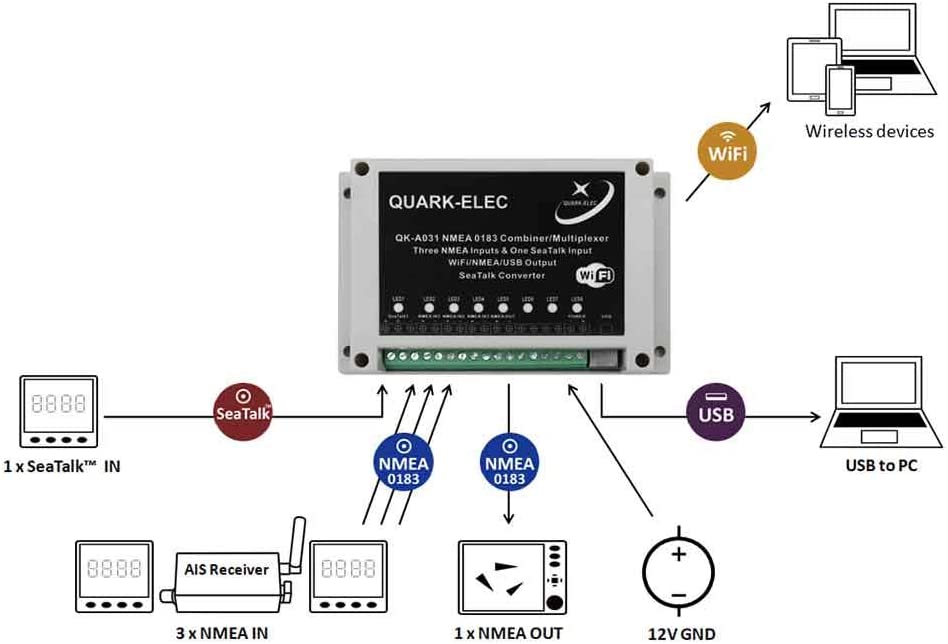

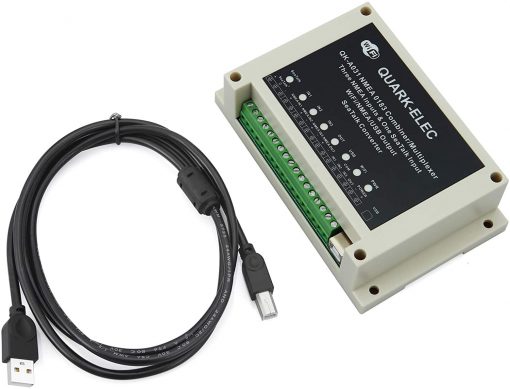

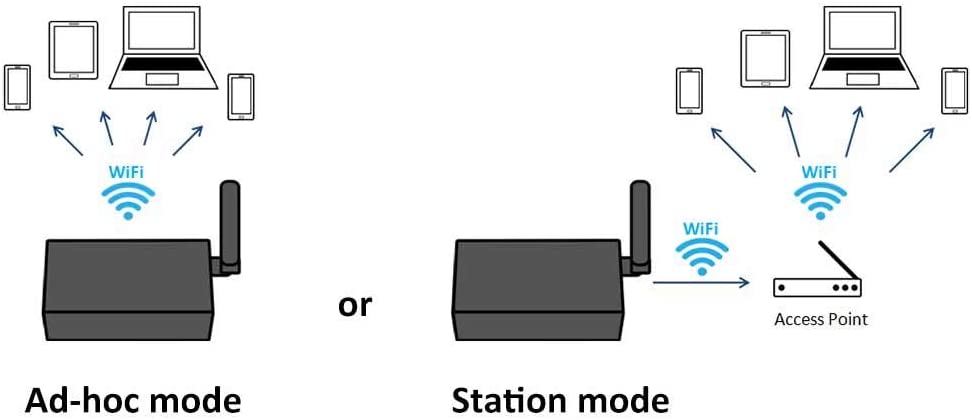

Introduction QK-A031 NMEA 0183 multiplexer enables the connection of multiple NMEA 0183 devices and host devices such as PCs, laptops or tablets. QK-A031 multiplexer has three NMEA 0183 inputs (listener-ports), one SeaTalk1 input, one NMEA 0813 output (talker-port), a WiFi interface and a USB port to connect to a host devices. The multiplexer combines NMEA data that is received on the listener ports and sends this data to a talker port, the WiFi interface and the USB port simultaneously. The USB port is also used for configuration of specific WiFi and NMEA ports settings. Features Multiplex up to three NMEA 0183 input devices Galvanically isolated NMEA and SeaTalk input ports Configurable baud rates: (4.8, 9.6, 38.4k input and output) Differential NMEA output with galvanically isolated protection Simultaneous wireless and USB output The internal WiFi access point connects up to 4 devices simultaneously Ad Hoc and Station operating modes SeaTalk to NMEA 0183 protocol converter Wide power supply voltage: DC 12-35 Volts · Compatible with Windows, Mac, Linux, Android and iOS (Initial Configuration must be completed using Windows software.)· This device connects to NMEA 0183 and is compatible with RS422 output devices. NMEA 0183-RS232 devices can connect to our device by using the Garmin Bridge (QK-AS03)· This device does not come pre-loaded with map data. We advise using openCPN for map data. Some iOS apps may charge for map use Driver and Application notes can be downloaded from Quark-elec website or CDs in the package. For any technical questions regarding this item, please go to the forum at https://www.quark-elec.com/forum/ and ask us your question. Your question may already have been answered there.
Very sophisticated NMEA 0183 and Seatalk multiplexer
Multiplexer: Combines up to 3 NMEA 0183 inputs with Seatalk.
