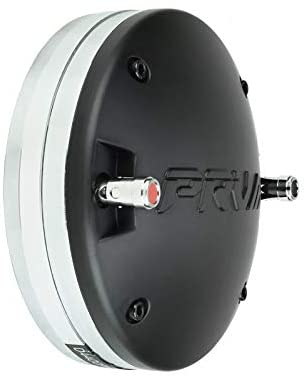

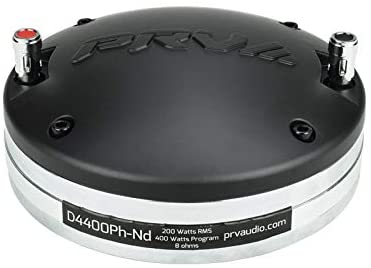

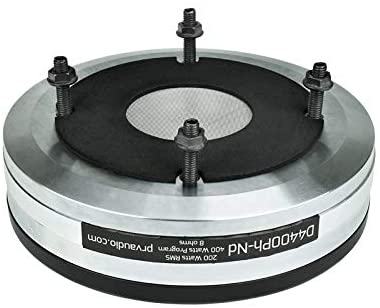

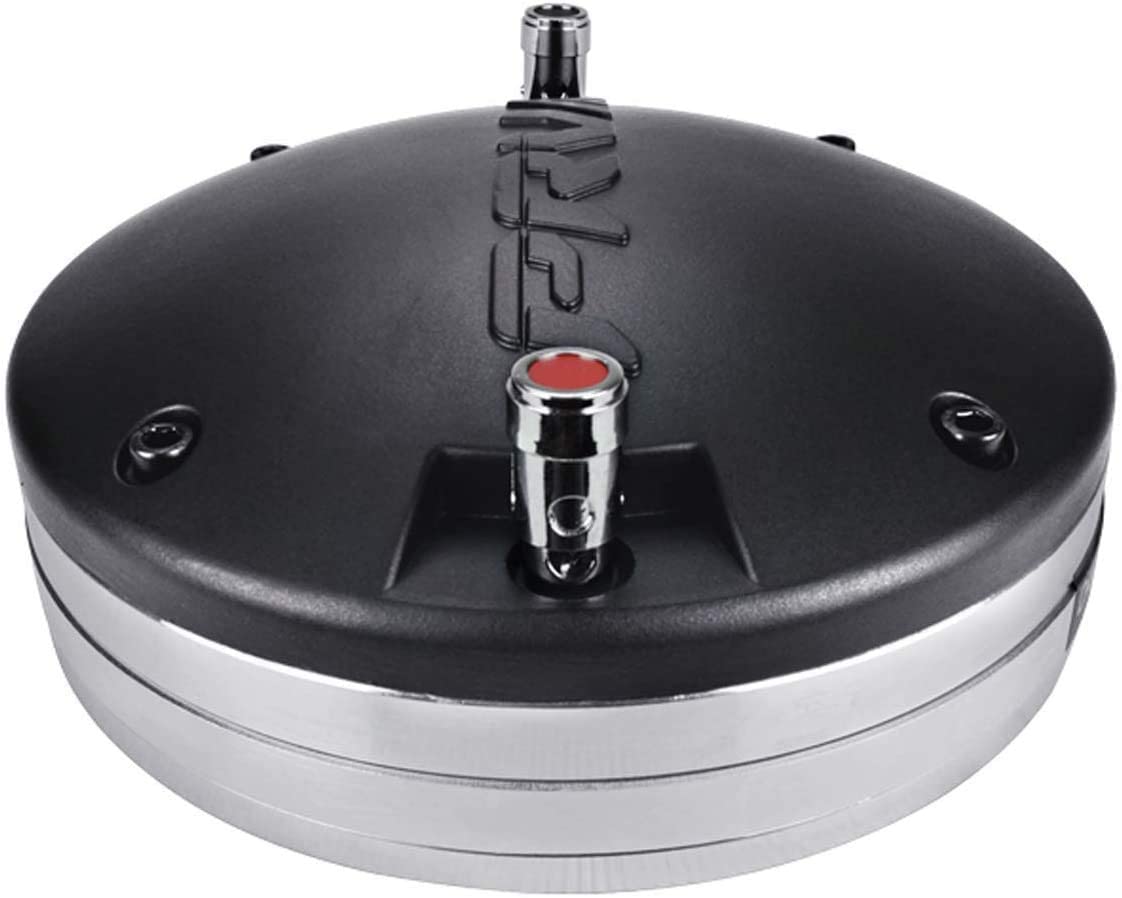

B079332TPY PRV AUDIO D4400Ph-Nd 2″ Exit Phenolic Neodymium 200 Watts RMS Pro Audio Compression Driver 4″ VC 109dB (Single)

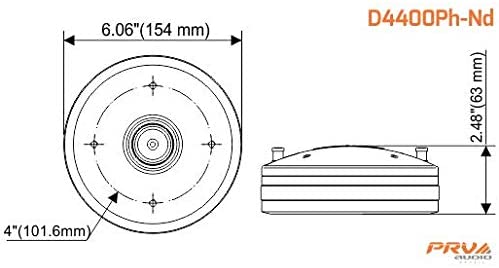

Size:D4400Ph-Nd, 2″- 200WThe D4400Ph-Nd 2” exit Phenolic Mid-range Frequency is the neodymium version of our D4400Ph. The nearly-indestructible Phenolic Diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 650 Hz. This driver is recommended for midrange support in multi-way PA’s, stage monitors, side fills, and high SPL car audio systems. The lightweight D4400Ph-Nd is designed to ensure a quality sound and long-lasting play in most any environment. GENERAL SPECIFICATIONS Type: Bolt-On Exit Throat Diameter: 2” (50 mm) Nominal impedance: 8 Ohms Rated AES Power Handling (RMS): 200 Watts Program Power: 400 Watts Sensitivity 2.83V at 1m: 109 dB Recommended Hi-Pass Crossover**: 700 Hz*** **For Full Power Handling ***12db Per Octave Crossover Frequency Response at -10dB: 450 – 7,500 Hz Voice Coil Diameter: 4” (101.6 mm) Voice Coil Wire: CCAW Voice Coil Former Material: Kapton Diaphragm Material: Phenolic resin Flux Density: 1.90 T Magnet Material: Neodymium EXTRA INFO Overall Diameter: 6.06” (154 mm) Overall Depth: 2.48” (63 mm) Mounting Bolt Circle: M6x4 4” (101.6 mm) Net Weight: 8.82 lbs (4 kg) Shipping Weight: 8.88 lbs (4.28 kg) Carton Dimensions W x L x H: 6.89” x 6.89” x 3.74” (175 x 175 x 95 mm)
PRO AUDIO PHENOLIC NEODYMIUM COMPRESSION DRIVER
Throat Diameter: 2″
#242,255 in Electronics (See Top 100 in Electronics)#382 in Car Tweeters#3,498 in Car Coaxial Speakers
17-Jan-18
0
FALSE

PRV AUDIO
6.06 x 6.06 x 2.48 inches
