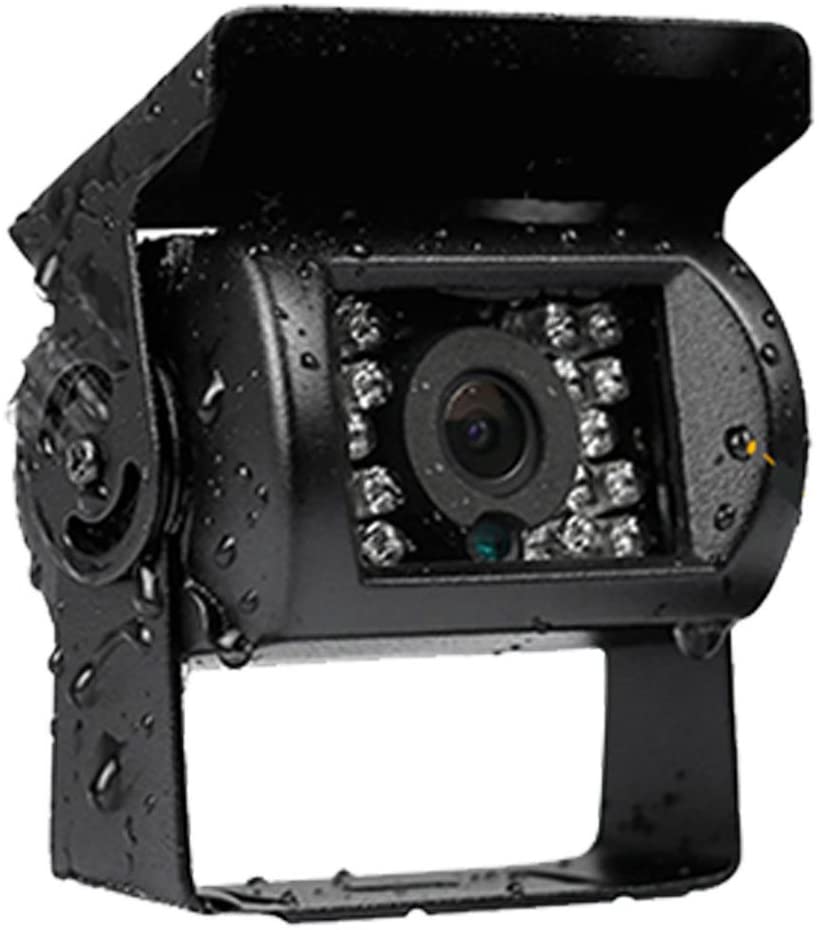

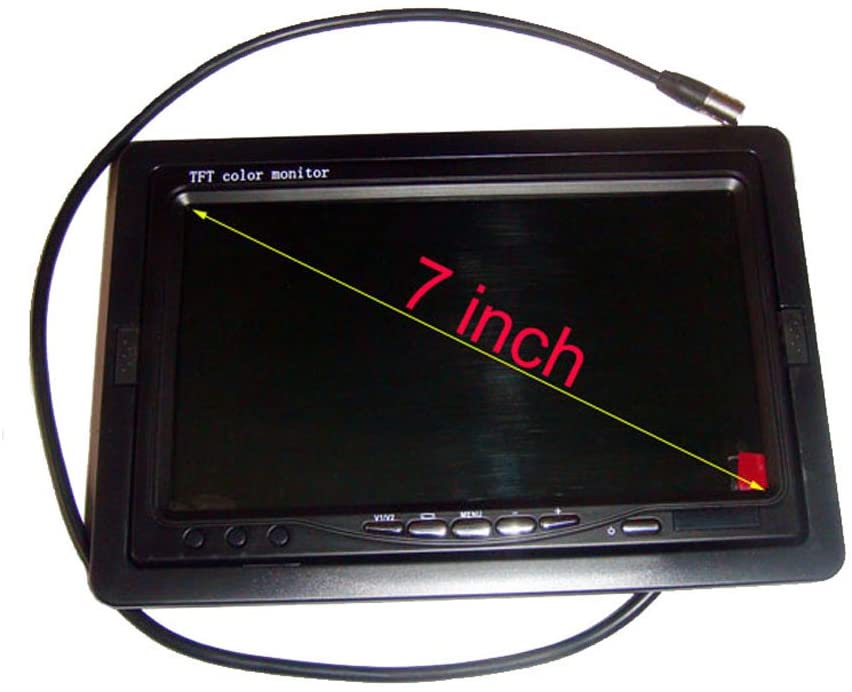

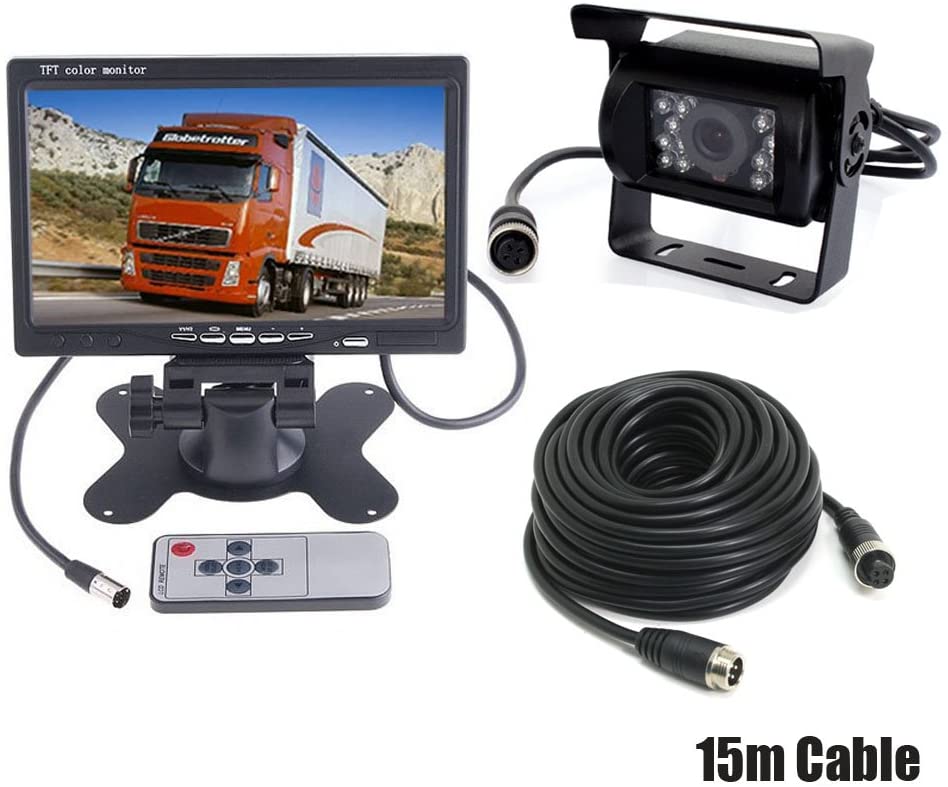

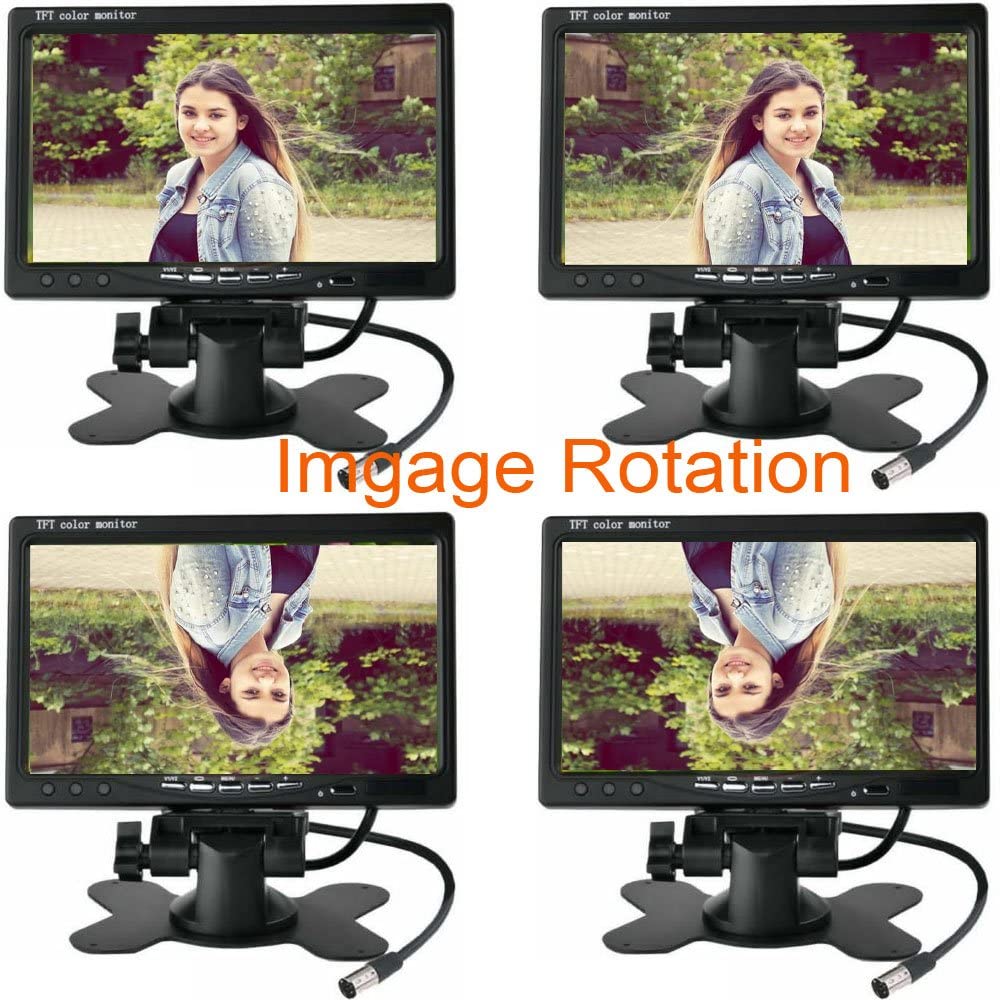

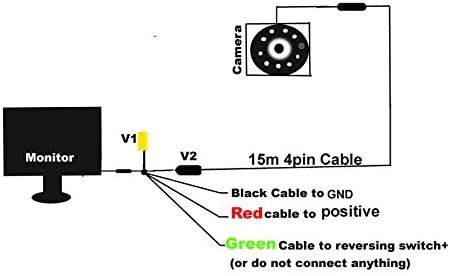

Item description: 18 IR reverse camera, high-resolution picture 7″ TFT LCD monitor Available for VCD/DVD/Camera 2 channels video input, full color display. auto white balance Automatic back sight function for car backing 100% waterproof IR camera with 120° wide view angle 18 infrared lamps, night vision up to 10-15 meters Can easily adjust the camera installation angle in multi-level Headrest style installation, support screen rotation, Only need to connect the monitor power cable :red to car +,Black to GND,Green to reversing system + is ok,No need to connect power cable for camera. easy to mount & easy to use 7″ CAR TFT LCD MONITOR 12V-24V Display Size 7.0 Inch Resolution 480(W) x RGB x 234(H) System PAL&NTSC Auto Power requirement DC 12V-24V Consumption 6W Video 2-channel video input; V1/V2 switch Net Weight Approx. 743g 18 IR LED Car Reverse CCD COLOR CAMERA Image sensor 1/4″ Color Sharp CCD TV system : PAL Lens: 2.8mm(120 View angle ) Number of pixels: 720(H)*586(V) Horizontal Resolution: 420 TV Lines Scan frequency: 50Hz ~60Hz S/N Ratio: =48dB(AGC OFF) Minimum illumination: 0 LUX Backlight compensation: Auto White Balance: Auto Tracing Auto Gain Control: Automatic Night vision: Yes Video Output: 1.0Vp-p.1.5?. RCA Connector Synchronous System: International Synchronization work Temperature: – 20°C ~ +60°C Power Requirement : DC 12 V-24V Focal distances: 30mm to infinite Weight: Approx. 300g Waterproof:IP 66 Packaging include: 1 x 7inch 4Pin Rear view Monitor 1 x Monitor Bracket 1 x Remote Controller (Cell Battery maybe remove for mail) 1 x Power & Video Connect Cable 1 x 18 LED Reversing Camera(Mirror image) 1 X 15M video Cable (Other seller only with 10m cable)
Make sure this fitsby entering your model number.
7″ TFT LCD monitor,Available for VCD/DVD/Camera, 2 channels video input, full color display. auto white balance
