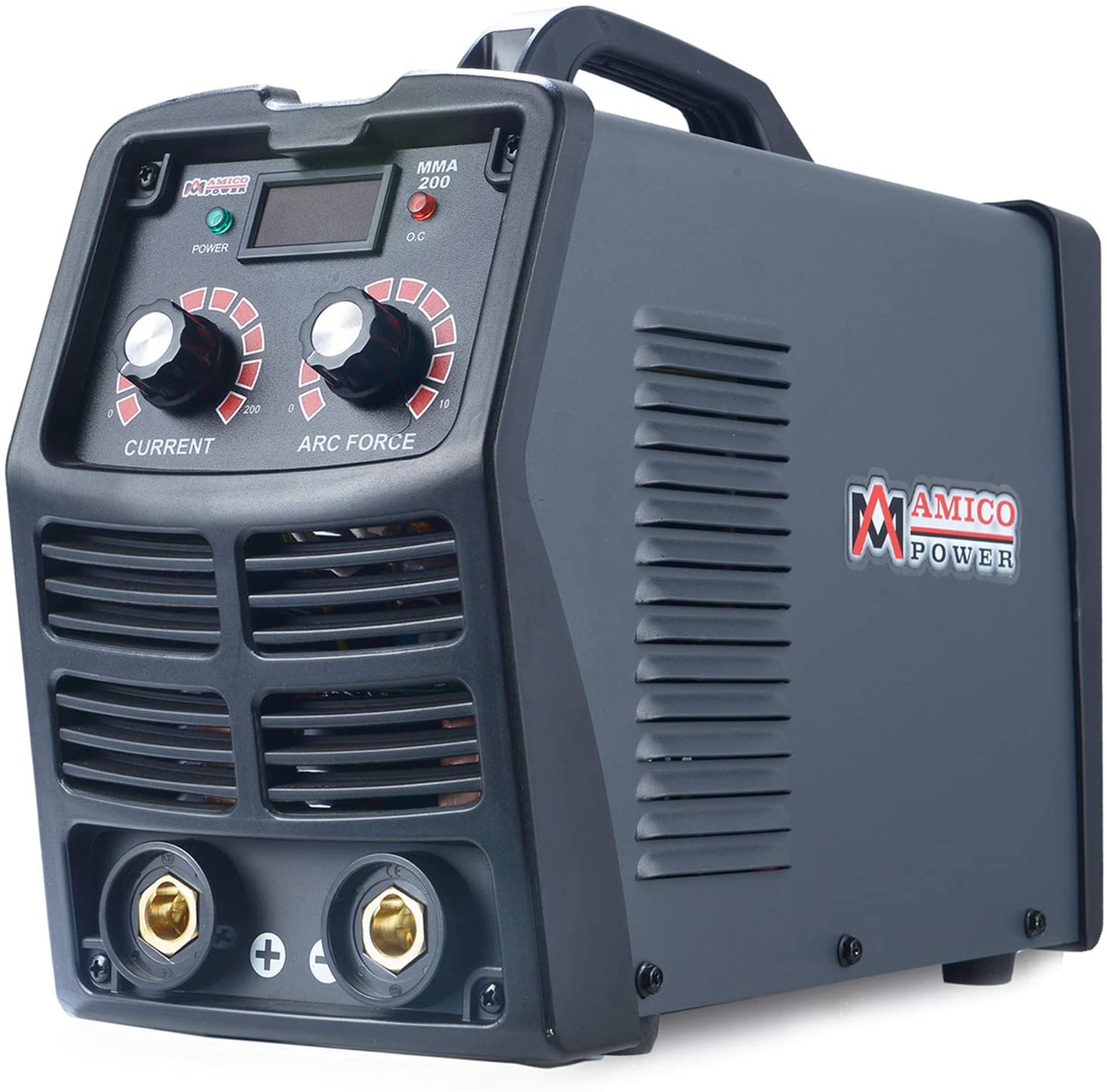

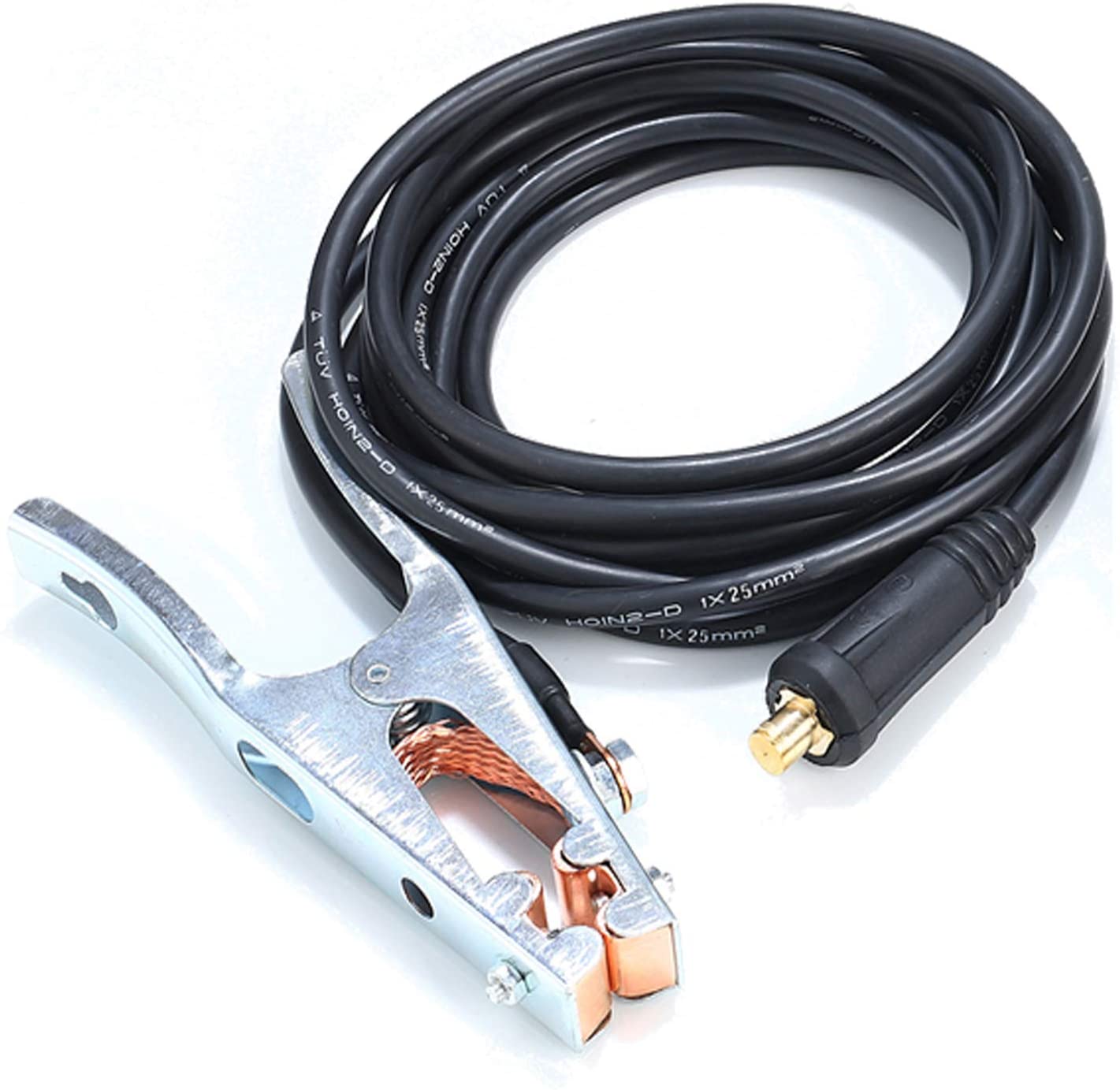

MMA-180 is a rectifier adopting the most advanced inverter technology. welding power source can offer stronger, more concentrated and more stable arc. when stick and work piece get short, its response will be quicker. it means that it is easier to design into welding machine with different dynamic characteristics, and it even can be adjusted for specialty to make arc softer or harder. Specifications: Rated Input Voltage: AC 110V & 230V; Frequency: 60Hz/50Hz; Rated Input Power: 230V/9.5KVA/41A & 110V/5.6KVA/51A; Current Range: 230V/15-180A & 115V/15-140A; Force Current: 0-50 Amp & 0-10 Amp; Rated Duty Cycle: 230V/180A at 60%, 153A at 100% & 115V/140A at 100%; Nominal DC Open Circuit Voltage: 75-Voltage; Usable Electrode: 230V/1/16” – 5/32” & 115V/1/16” – 1/8”; Power Factor: 0.93; Dimension: 13.5 x 6.5 x 11 inch; Net Weight: 18.9 lbs. Packaging Size: 16.5 x 9.5 x 13 inch; Packaging Weight: 26 lbs. Packing List:8-feet Power Cord & 6-50P Plug (on the machine).500A Electrode Holder, 10-feet Cable, 35-50mm Connect; 500A Work Clamp, 10-feet Cable; 230V to 110V Power Adapter; 2 Pieces Electrode of 1/8 inch; Owner’s Manual.
Make sure this fitsby entering your model number.
Easily Weld All Types Electrodes: E6010, E6011, E6013, E7014, E7018.
