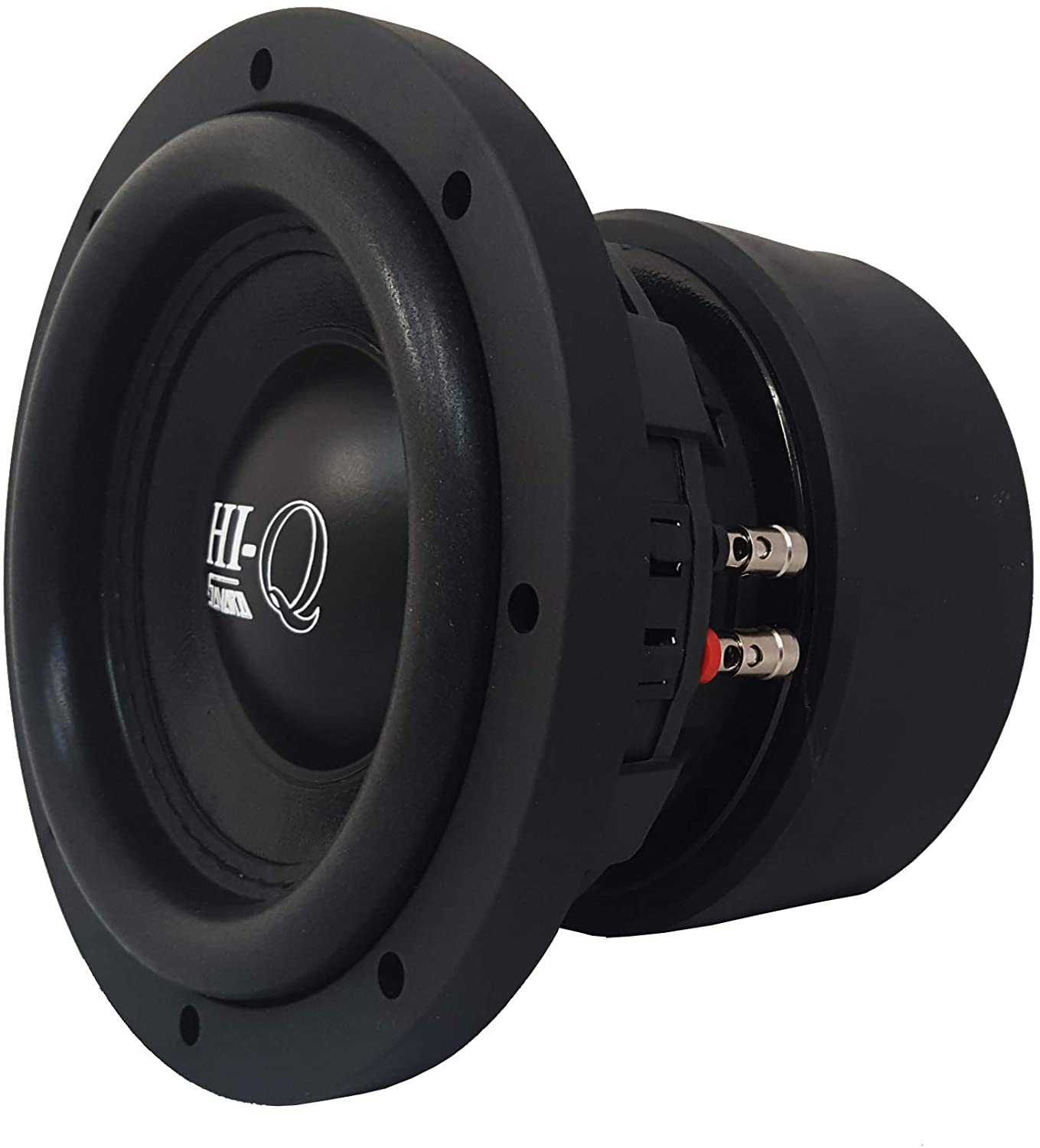

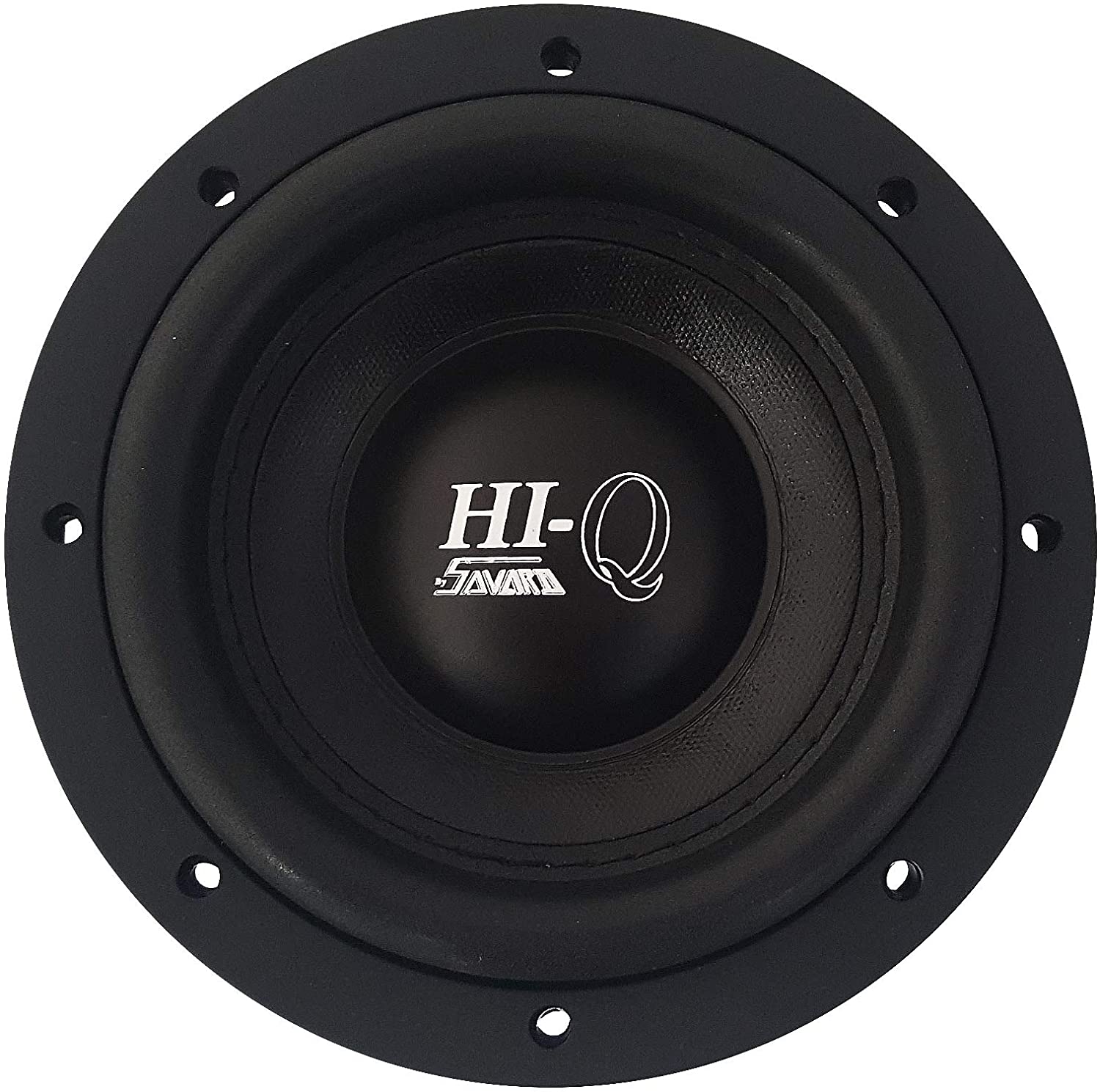

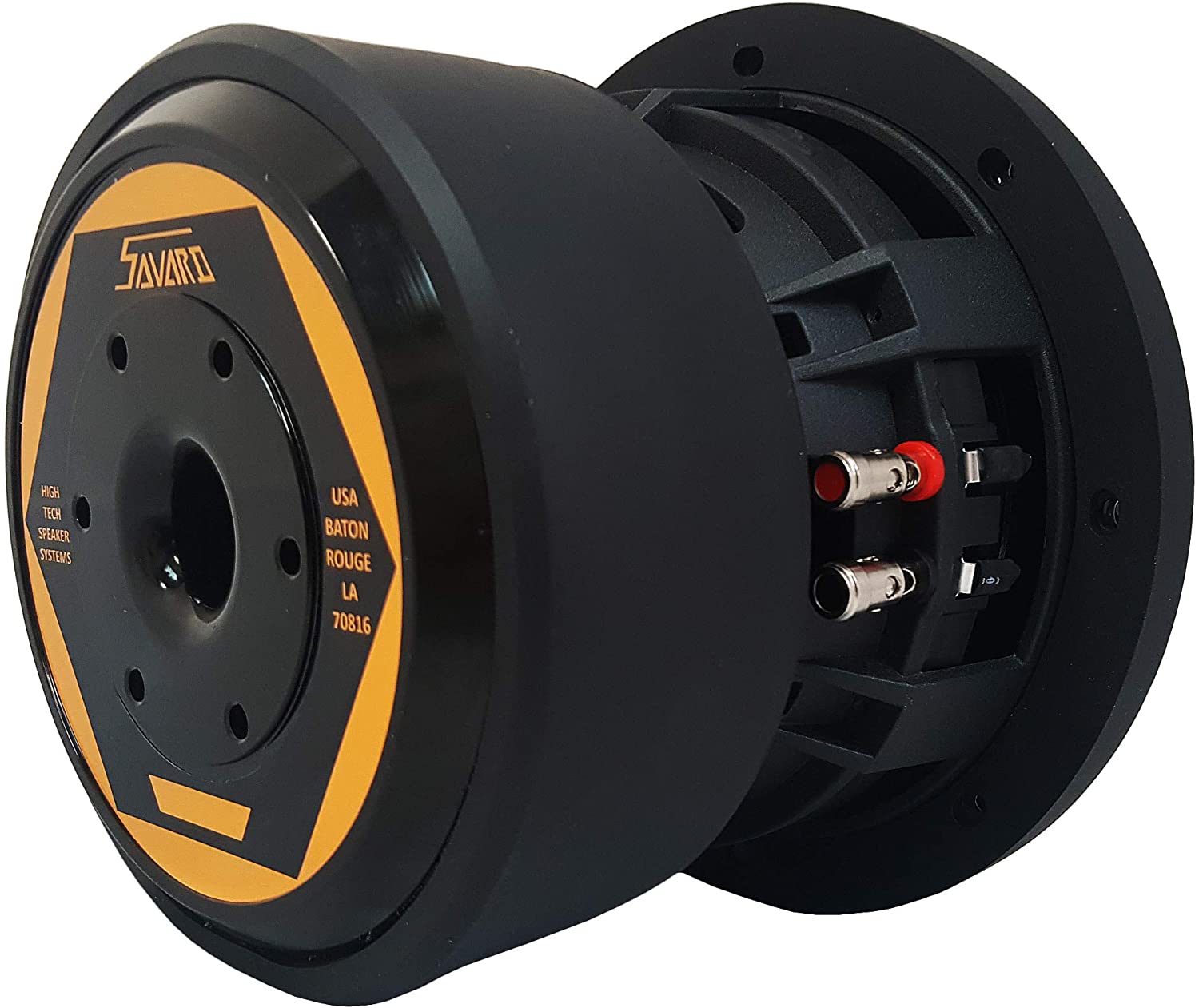

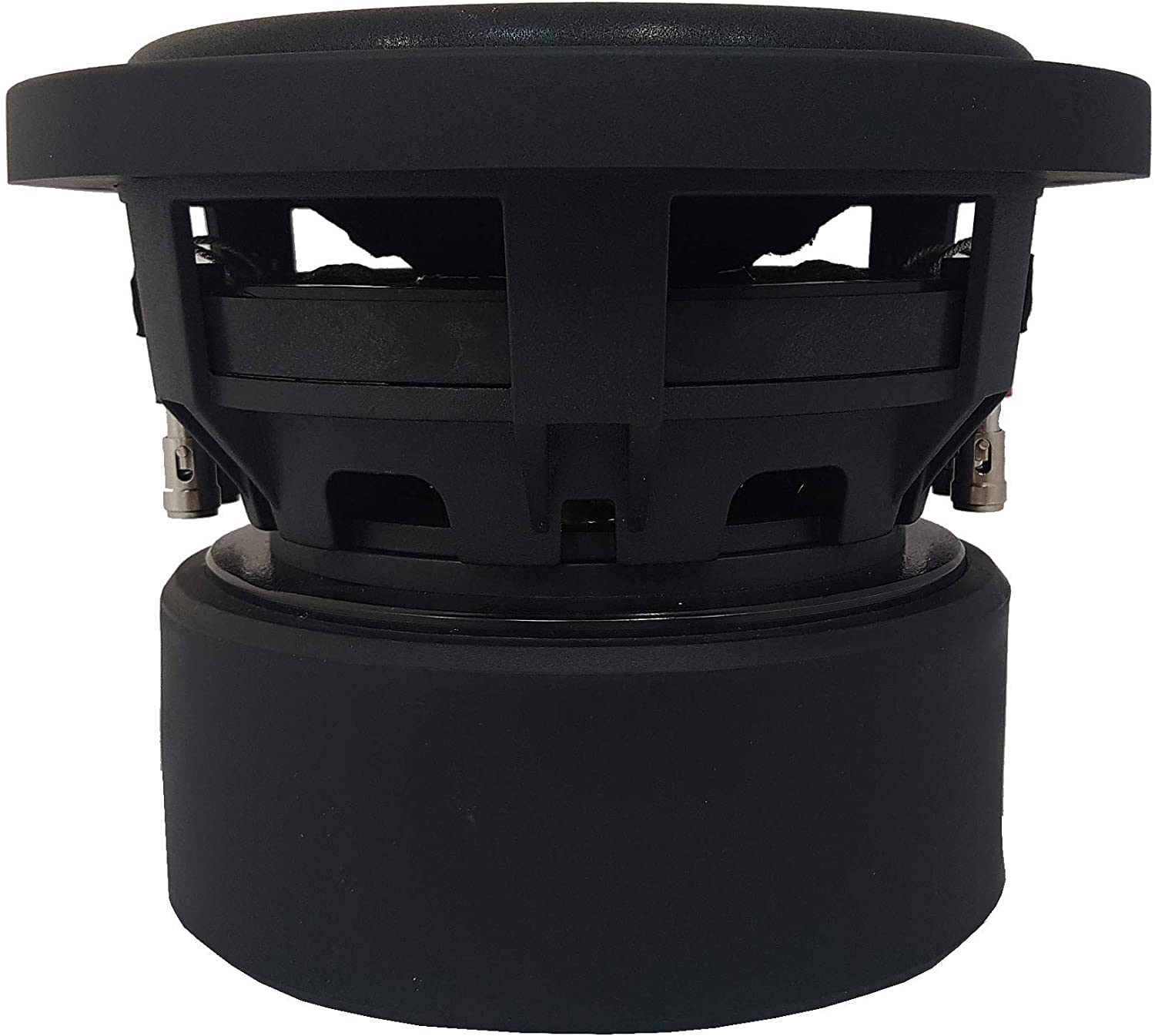

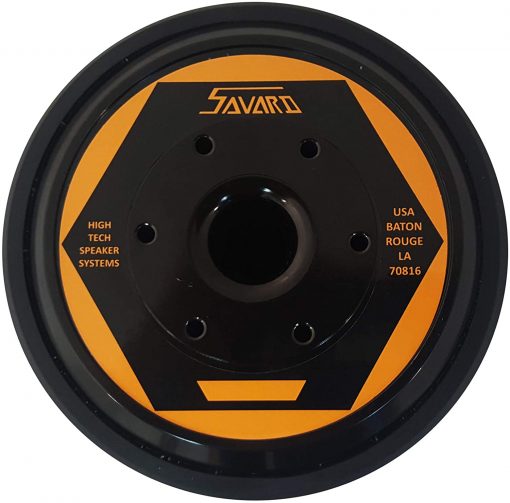

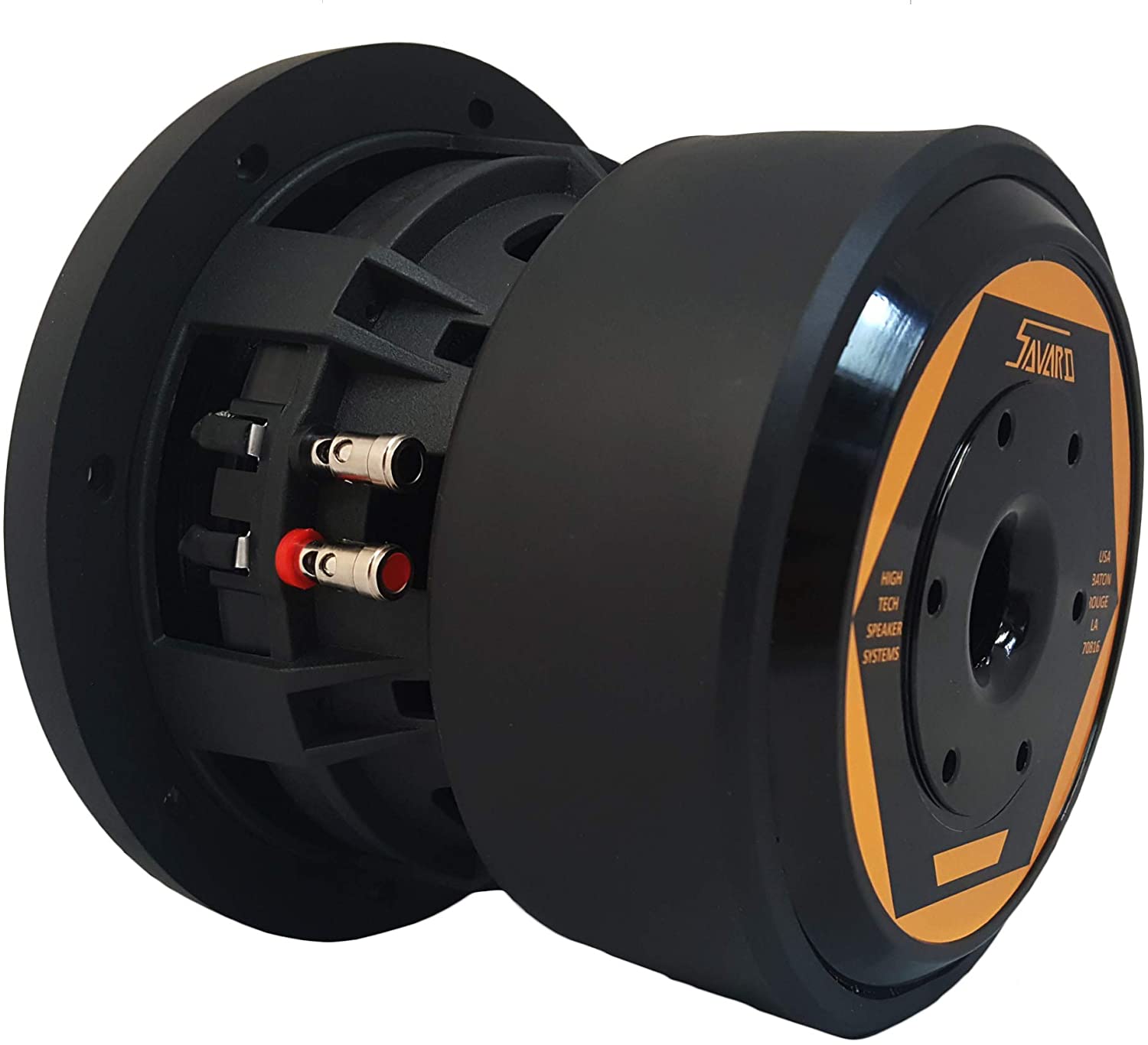

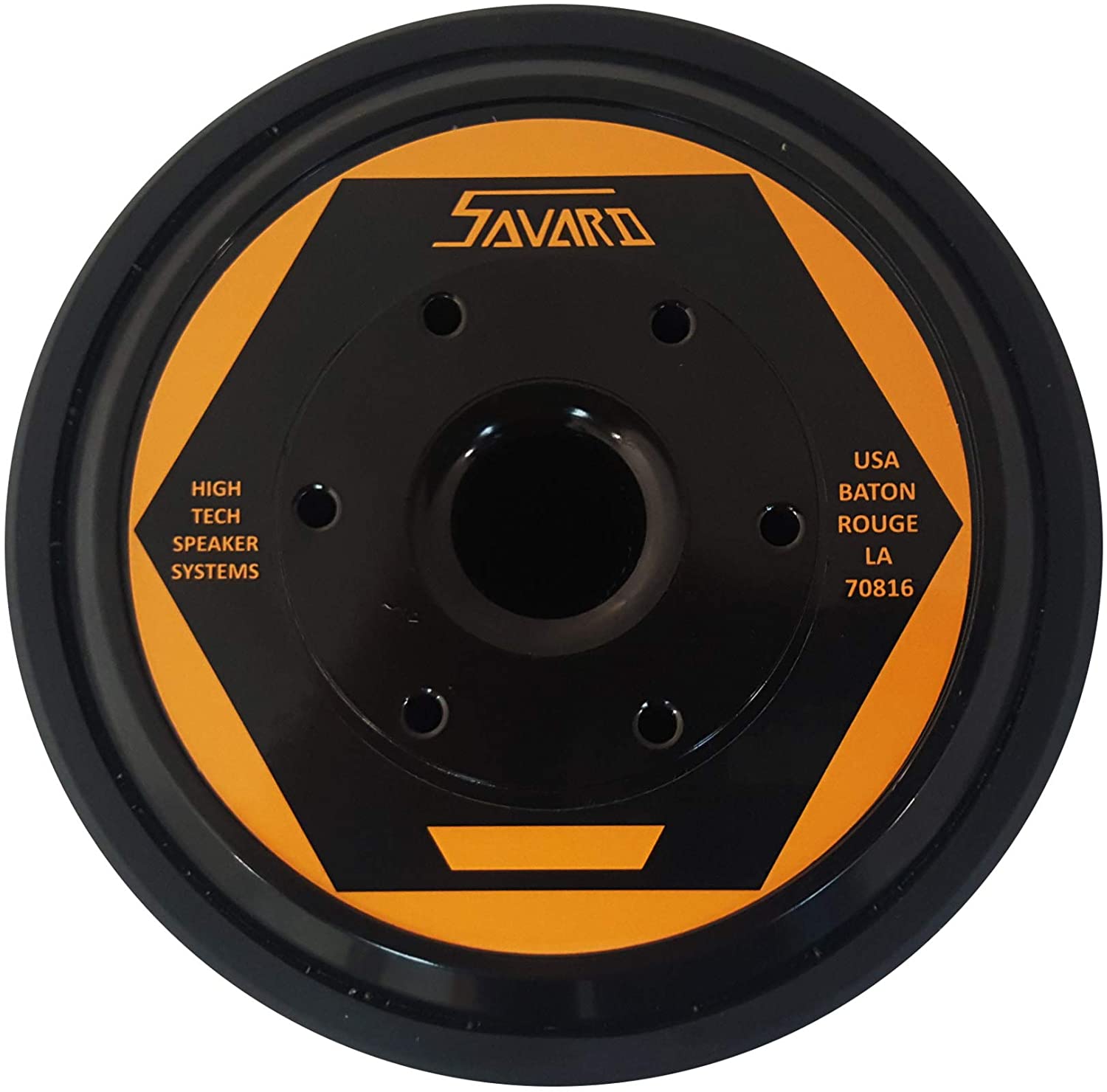

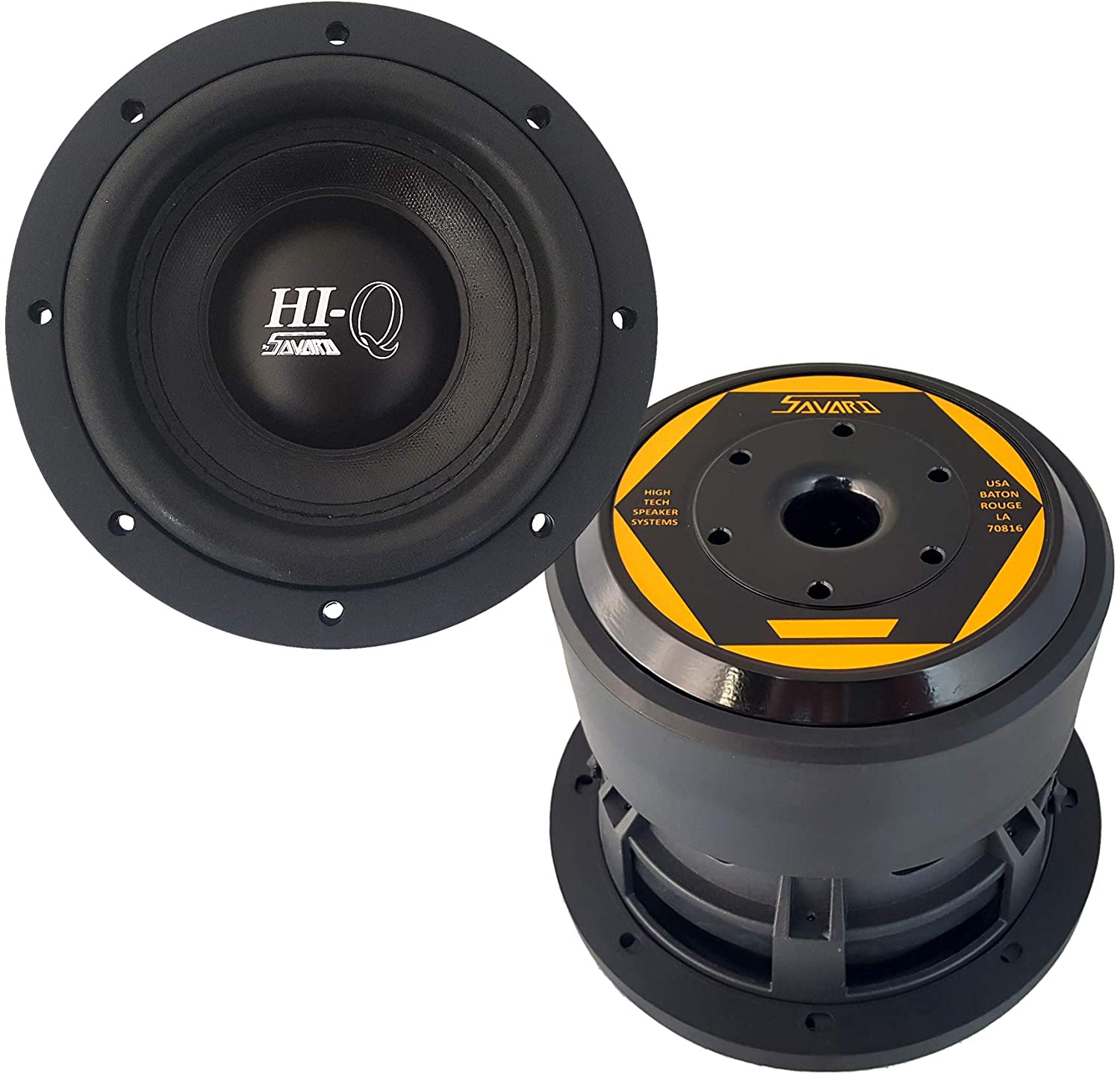

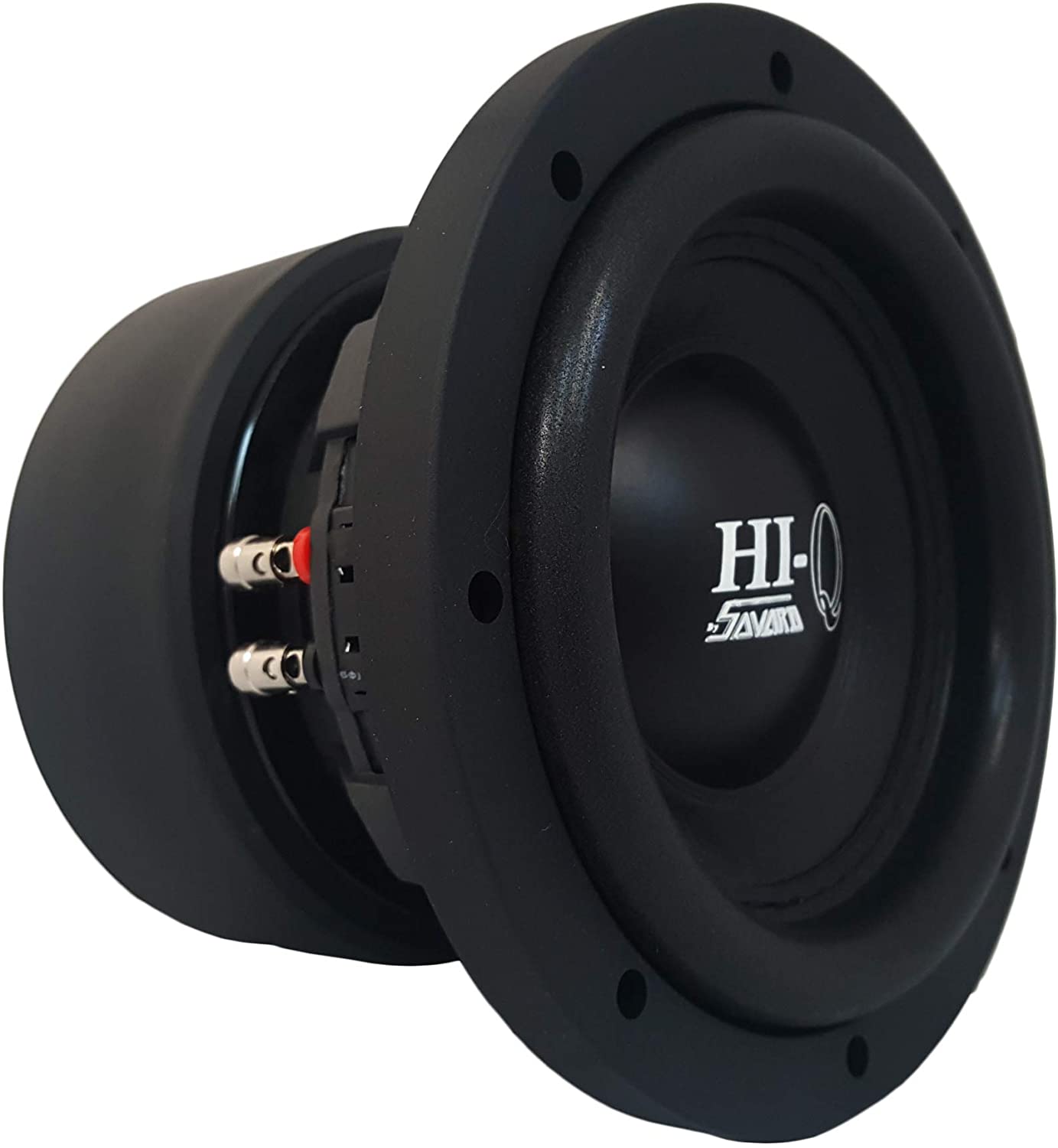

300w SAVARD Speaker Systems HiQ Series 6.5″ Subwoofer SAVARD HiQ Series General Features: -Long Strand Kevlar Reinforced Cone – Tall Roll Nomex Stitched Surround = Progressive Conex Spider with Reinforced Tensel Leads – Over/Under Removable Gasket for Multiple Mounting Configurations -Cast Aluminum Basket w/360 Degree Venting -Pole Vent for Increased Cooling -2″ Quad Layer Copper VoiceCoil -2″in Thick Double Stack Y35 Grade Ferrite Motor -12 AWG Spring Terminals HiQ 6.5″ Specifications -Power Handling: MAX 350w/RMS -Rec. Power Range: 50-300w/RMS -Dual 2Ohm Impedance -Frequency Response: 20-300Hz -Sensitivity: 81.43db 1w/1m Thiele and Small Parameters: -Resonant Frequency (Fs): 41.72Hz -DC Resistance (Re): 4.48 Ohm -Voice Coil Inductance (Le): 3.91 mH -Mechanical Q (Qms): 4.650 – Electromagnetic Q (Qes): 0.423 – Total Q (Qts): 0.388 -Mechanical Compliance of Suspension (Cms):0.16 mm/N Compliance Equivalent Volume (Vas): 0.185 cuft -BL: 16.0 Tm -Diaphragm Mass w/Airload (Mms): 91.79g Mounting Information: -Overall Diameter: 7.125″inch -Baffle Cutout Diameter: 6″inch -Mounting Depth: 5″inch
#228,584 in Electronics (See Top 100 in Electronics)#1,812 in Car Component Subwoofers
########
0
FALSE
Savard Speaker Systems
