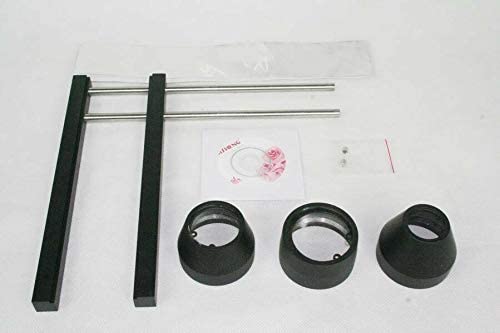

Technical Parameters: Working Voltage: AC110V/60Hz Output power: 800W Infra-red lamp body temperature adjustable: 100-350 Preheating dish temperature adjustable: 60-200 Feature: Infrared soldering technology with independent exploration capabilities via three (3) focus lenses which are included with the package. Technician focused infrared heat is easy to target most component removal/replacement and re-work. The Workstation has a 120 X120mm a 650W controlled Pre-heating System. Infrared heat source bulbs are long-lived, in-expensive and easily replaced. Processor controlled set-point regulated temperatures with thermocouple feed-back. Integrated and adjustable Infrared (IR) eye protection. Can suitable for the entire component, especially Micro BGA component. The T-862++ system also contains a temperature controlled touch-up iron and stand. Extra soldering tools are not necessary to solder/unsolder and re-work Surface MountTechnology (SMT) components 15-35cm in size What you will get: T-862++ Chassis:1 PCB Board holder: 936 Searing-iron:1 936 searing-iron rack:1 Lamp Body and Lens(D=28mm):1 Lens(D=38mm):1 Lens(D=48mm):1 Eye protection(IR Filter):1 Cell guide:1 Focus holder:1 Focus holder control knob:1 Fasten nut for focus holder:1 Steady ring:1 Fasten nut for steady ring:1 Power Cable (110VAC):1 5mm Fuse, 10A 250VAC(Spare):1 CD User Manual w/Video:1
Make sure this fitsby entering your model number.
?The T-862++ uses an Infrared source and optics to target heat to individual components without dislodging other SMT parts by way of eddies air currents.
