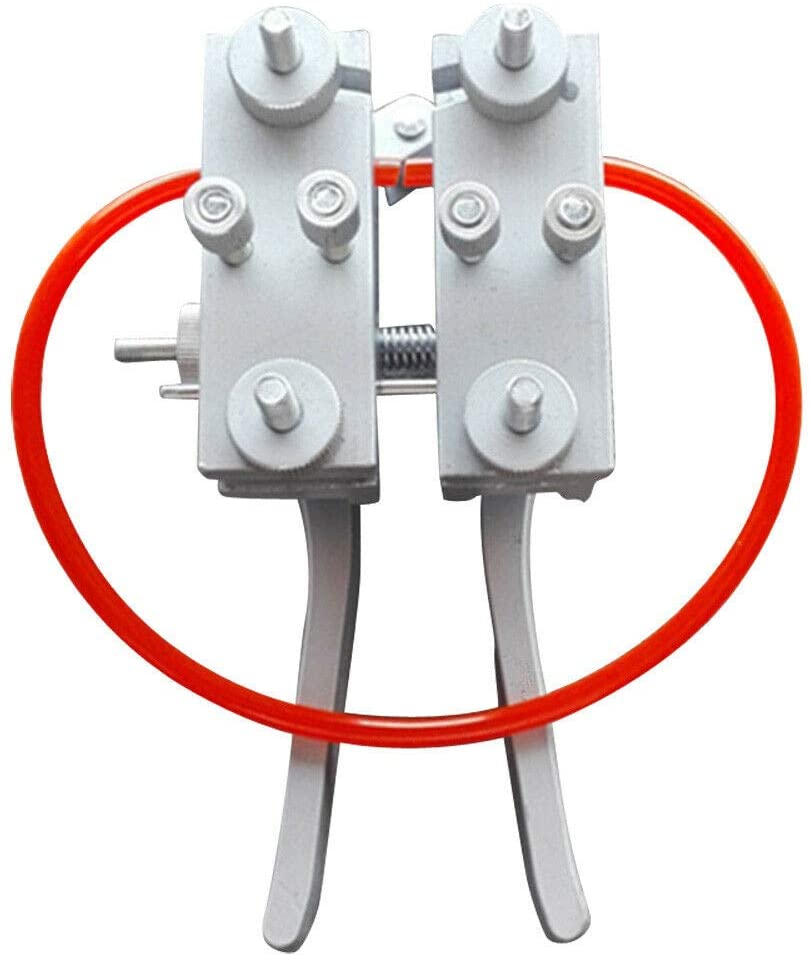

?Specifications:?Material: aluminum alloy?Packing size: 18*11*10cm?Weight: approx 3kg ?Instructions for use:1. Fix: Fix the belt that needs to be connected to the groove (usually V, O-shaped groove) under the aluminum clamp (the clamp is mainly referred to as the washer and nut). Specific method: remove the gaskets fixed on both sides of the nut and the nut (depending on the diameter of the belt, if the belt can be directly inserted into the groove, it is not necessary to remove the nut and the gasket), the belt is placed in the groove, and the gasket is The nut is re-fixed above the groove, and the splints on both sides are in a parallel state, and the spacing is about 2 cm (the thermostatic heater can be placed in the middle).2. Heating: The thermostat heater is energized to a constant temperature (the optimal temperature of the belt connection is 160-180 degrees), and the fixed belt is heated (provided that the heated belt does not have air bubbles, otherwise the connection effect is affected), and then docked, Tighten the manual pliers nut under the clamp to the belt butt.3. Reprocessing: The belt is butted, and after it is completely cooled, it is taken out, and the belt is scraped and flattened.Tips: PU round belt polyurethane round belt diameter is small, please put the round belt in the top slot, make the round belt 2 joints align, connect the round belt with larger diameter or the red polyurethane triangle belt, please put it below Inside the groove! ?Packing including:1*High precision connector
Make sure this fitsby entering your model number.
?MATERIAL:The connecting pliers is made of high quality aluminum alloy ,durable,lightweight and easy to operate &use.
