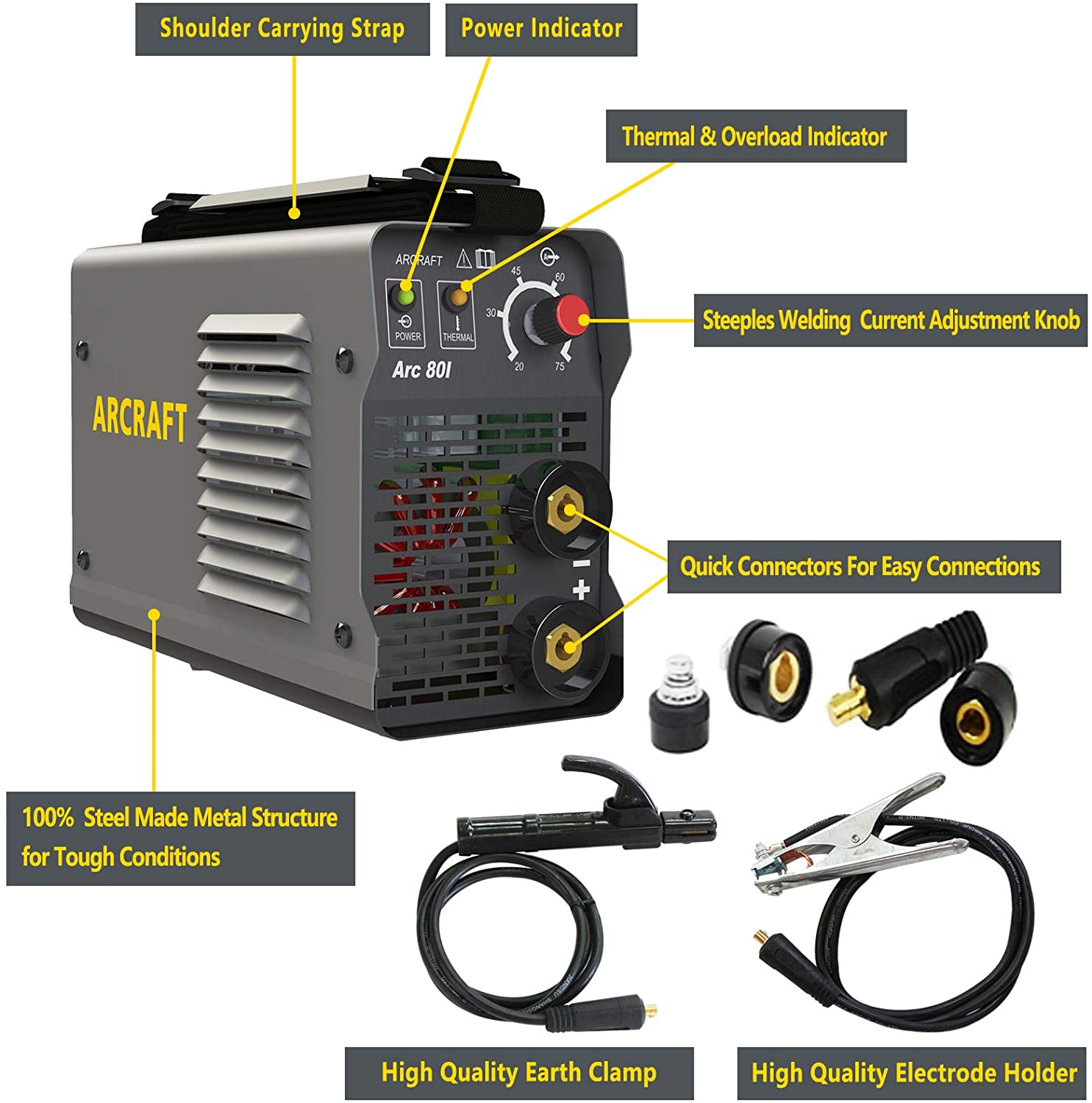

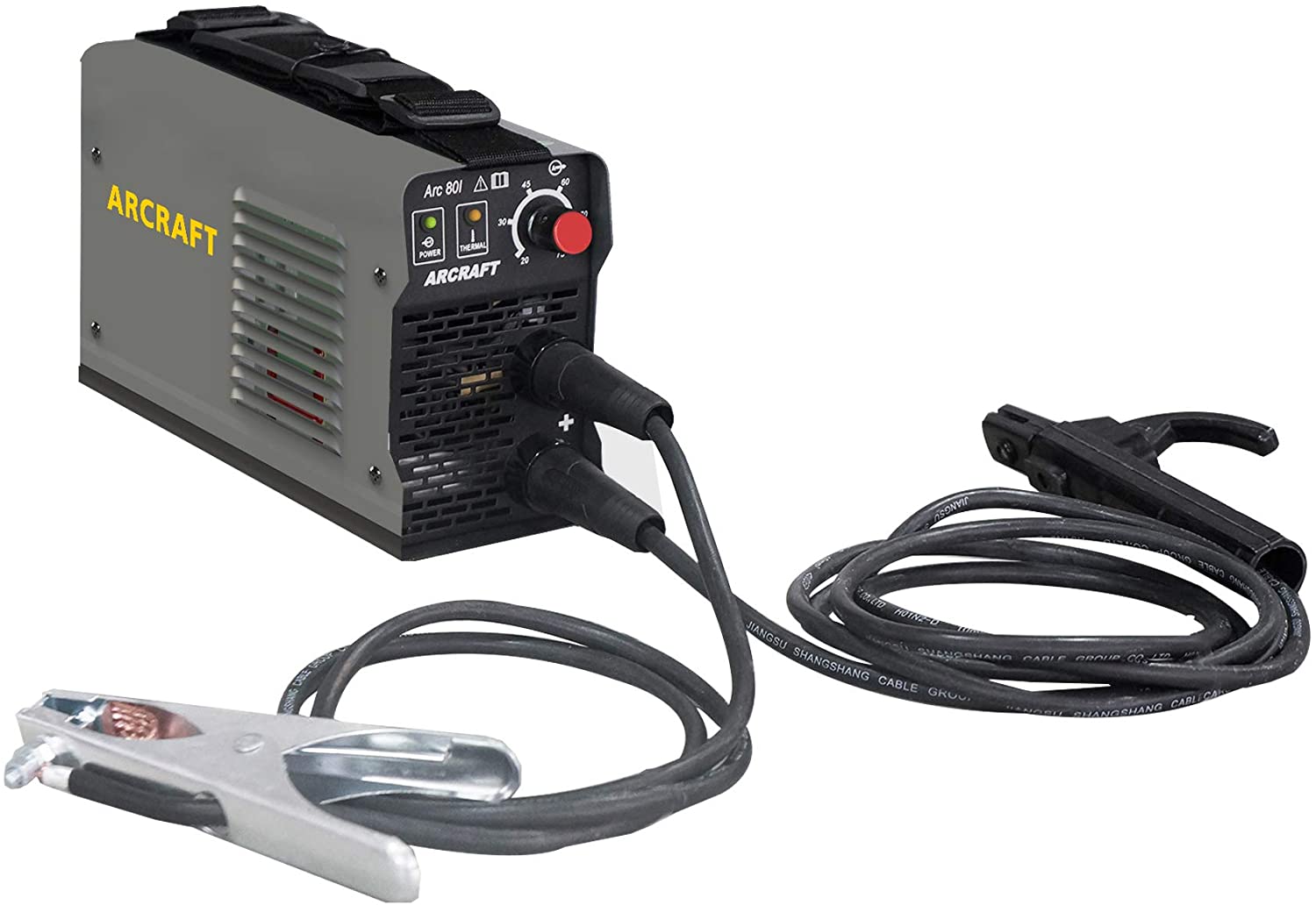

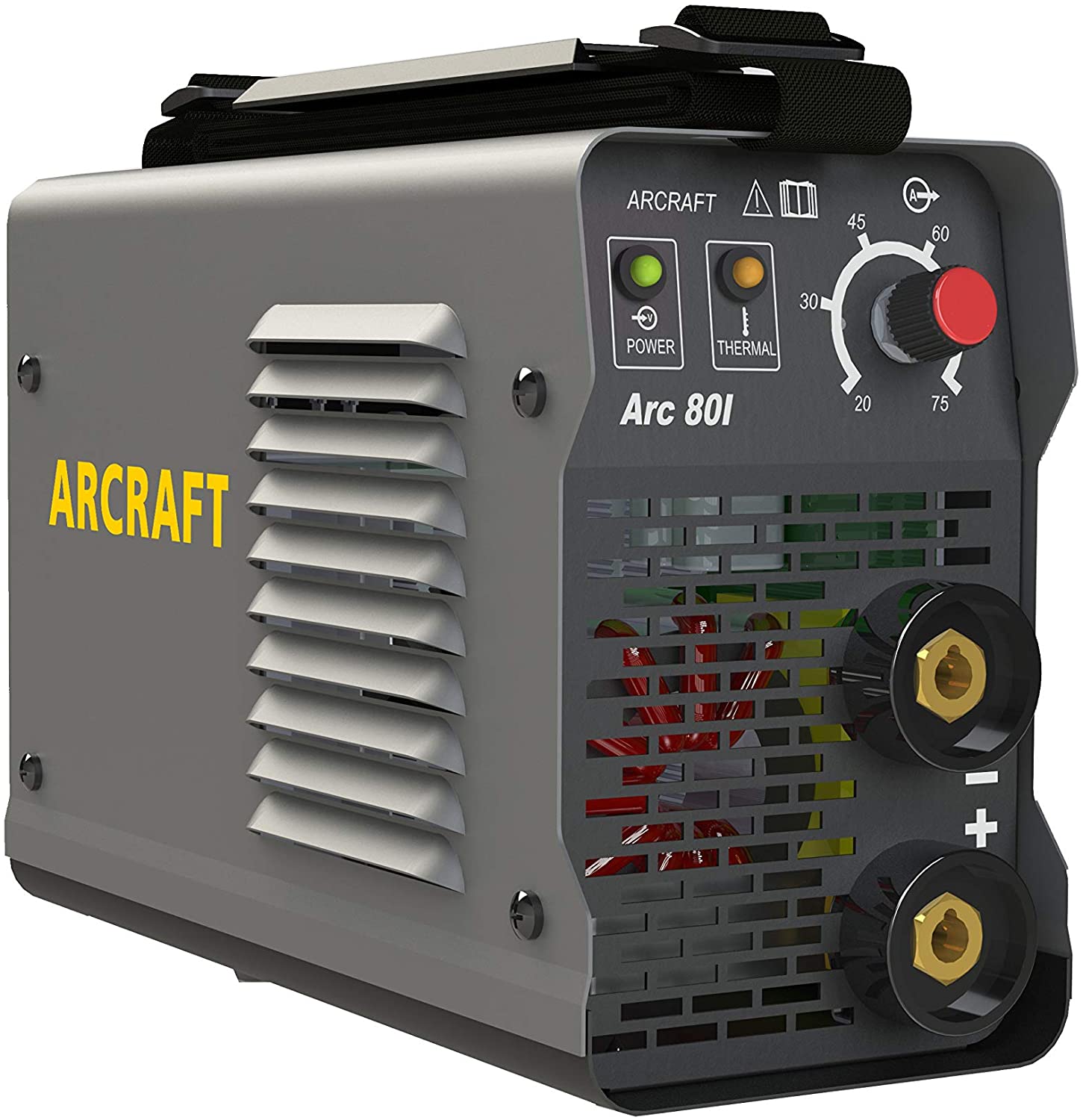

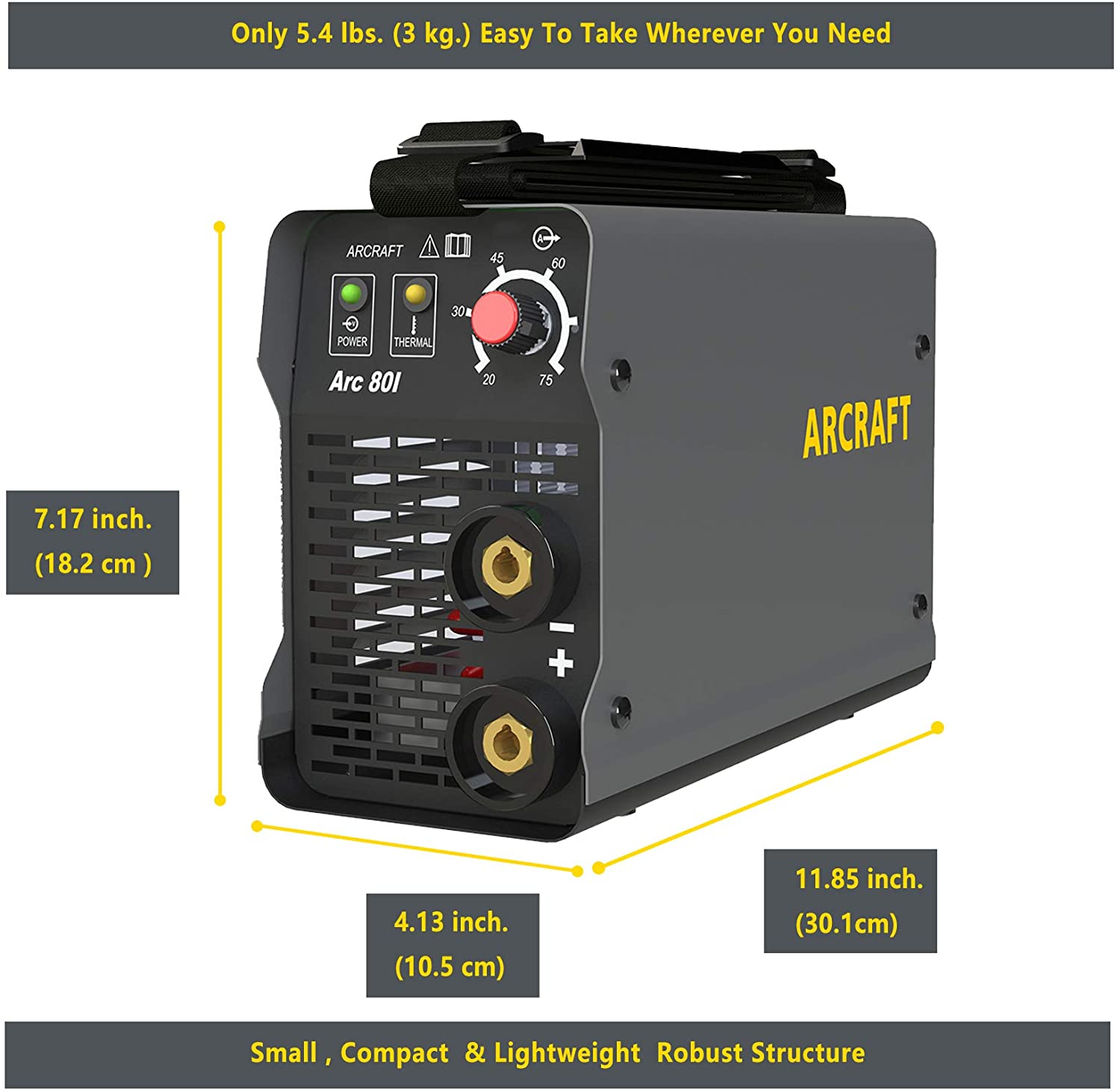

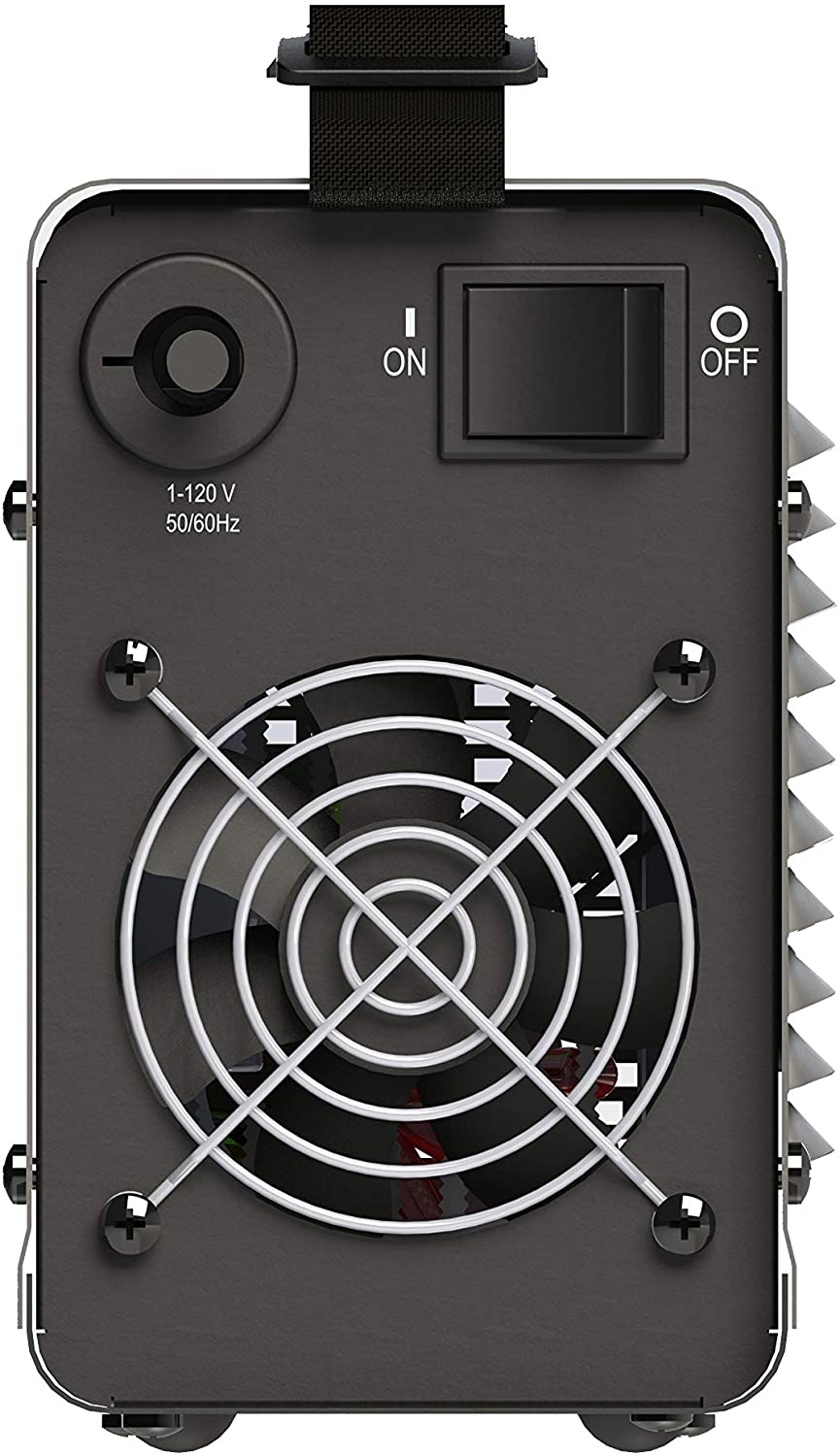

ARC 80 Inverter Arc Welder Brand ARCRAFTWelding Processes Stick/ARC/MMAInput Voltage 1~120 VFrequency 50/60 HzRated Capacity 2.4 kVAMMA Welding Current 20-75 ARated Welding Current 75 AMaximum Output Current 90 ARated Duty Cycle 40%IP IP21SInsulation Grade HCooling fan cooledPower cord (ft.) 6.6 ft.Product Weight 6.3 lbs.Shipping Weight 9.8 lbs.Electrode Size (in.) 1/16, 5/64, 3/32Welds Up To (in.) 1/8Weldable Metals Mild steel, stainless steel, cast iron, hard surfacingAccessories Included: 1*Welder; 1*8.2ft. electrode cable and holder; 1*5ft. ground cable and clamp; 1*Shoulder strap Portable SMAW (Stick) ARC Welder ARCRAFT ARC 80I Shielded Metal DC Arc (MMA)Welder is a compact, Lightweight Design with powerful 110/120 Volt Inverter-Powered DC Stick welder, 20 A to 75 A Welding amperage range. The single-phase inverter stick welder features 120V input power. The efficient inverter-powered system produces smooth DC arc welds with electrodes up to 3/32in. and materials up to 1/8in. An excellent choice for use on mild steel, stainless steel, cast iron, and hard surfacing. Includes 6.6ft. electrode cable with holder, 5ft. ground cable and clamp, and shoulder strap. Easy-to-use and user-friendly control panel,steeples welding current knob,easy welding cable connections with quick type connectors, IP21S Protection Class. Read more Variety Material Ideal for welding of carbon steels, low-alloy steels and stainless steels. Stick Electrode Excellent arc characteristics and performance with electrodes in diameters of 1/16″ ( 1.6 mm) to 3/32″ (2.5 mm) and materials up to 1/8in; Rutile (AWS A5.1 : E6013) and Basic (AWS A 5.1:E 7018) type electrodes. Ideal Welding Excellent for repair / maintenance, DIY, metal art , farm/ranch and home repair applications. Read more Technology With High Performance That You Can Have With ARCRAFT AC 80I IGBT Inverter Technology New Generation IGBT Inverter Technology with Built-in Anti-Sticking, Arc-Force and Hot Start Voltage and Thermal Protection Equipped with voltage protection this improves the reliability and safety. Excellent Cooling Strong and Reliable Fan cooling system for long time usage Easy to use Easy-to-use and user-friendly control panel,steeples welding current knob,easy welding cable connections with quick type connectors. IGBT Inverter Technology Voltage and Thermal Protection Excellent Cooling Easy to use Easy To Weld In Everywhere With Precise Ootput Control Earth Clamp & Cable 5 Feet Grounding cable with earth clamp and quick connector. Electrode Holder & Cable 8.2 feet Electrode holder with quick connector and cable. Perfect Welding Performance Precise and accurate output control that made stable arc as a result of perfect welding appearance. Lightweight design Lightweight, small and compact design; Weight is only 6.3lbs. (2.86 kg.) Read more ARC 80IHobby 80Inverter Flux Core 140MIG 140MIG 165TypeStick(MMA/ARC) WelderStick(MMA/ARC) WelderFlux Core WelderMIG(TIG/Stick) WelderMIG(TIG/Stick) WelderVoltage1~120(110/120) V1~120(110/120) V1~120(110/120) V1~120(110/120) V1~120/1~230 VFrequency50/60 Hz50/60 Hz50/60 Hz50/60 Hz50/60 HzRated Input Current20 A 20 A 20 A 20 A 20(120V)/28(23V) ARated Capacity2.4 kVA2.4 kVA2.4 kVA2.4 kVA2.4(120V)/6.4(230V) kVARated Duty Current40%20%30%30%40%(120V)/20%(230V)IPIP21SIP21SIP21SIP21SIP21SInsulation ClassHFHFFCertificatedCSACSACSACSACSA
Make sure this fitsby entering your model number.

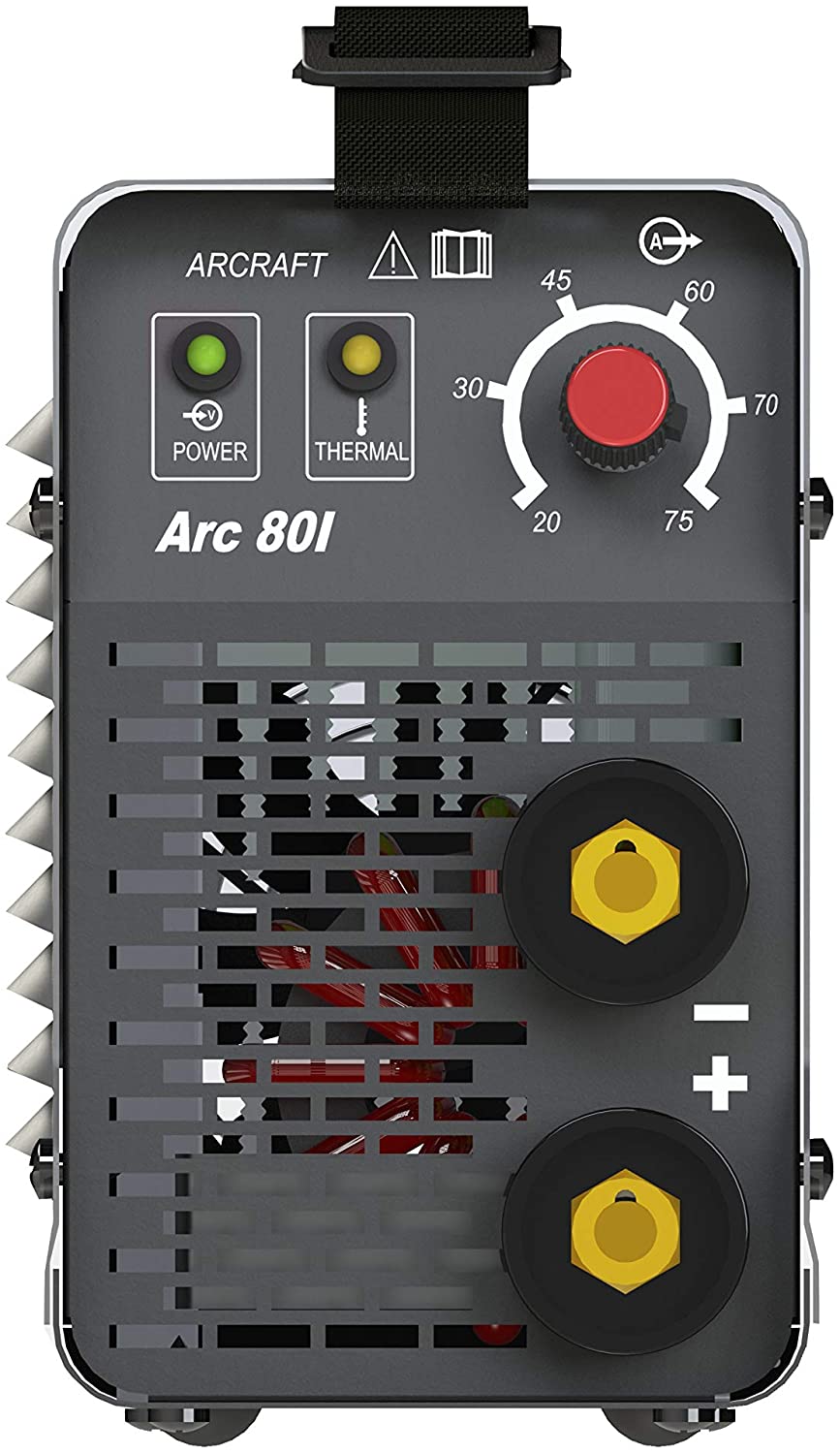

? Powerful 75 Amp DC output welds materials up to 1/8in, Inverter technology requires less input power. Adjustable amperage dial offers 20–75 Amp DC output for versatility, Duty Cycle: 20% @ 75 Amp.
