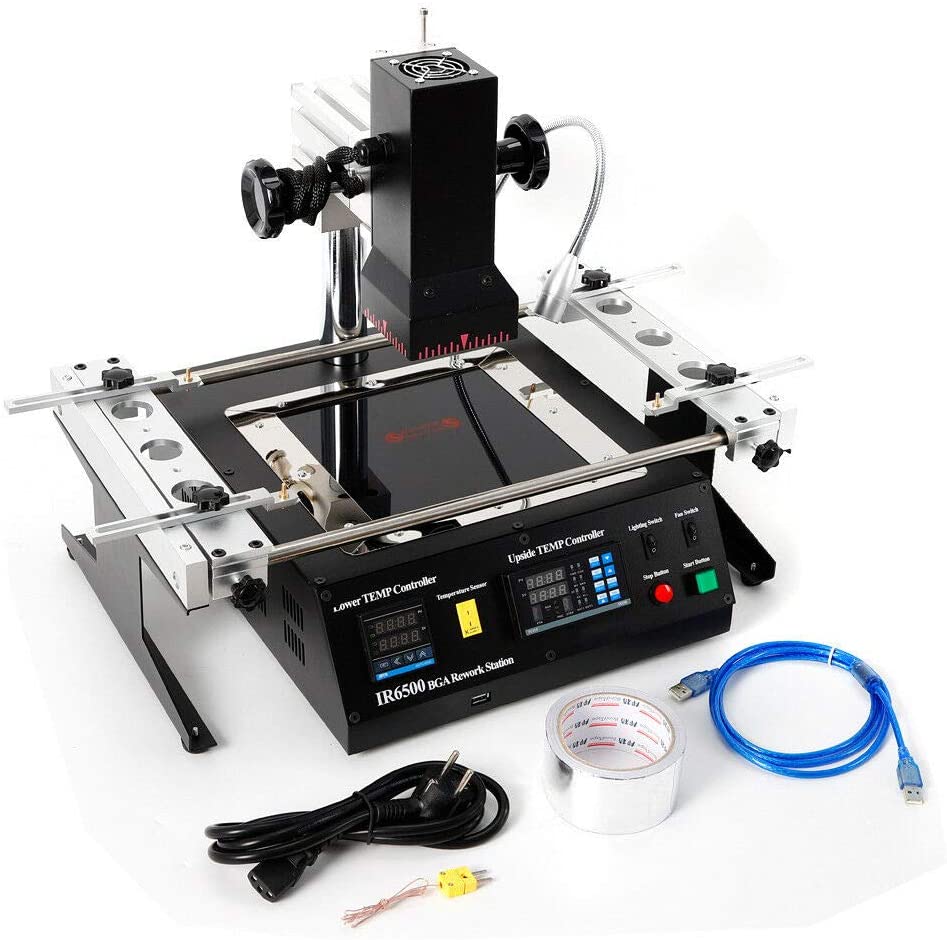

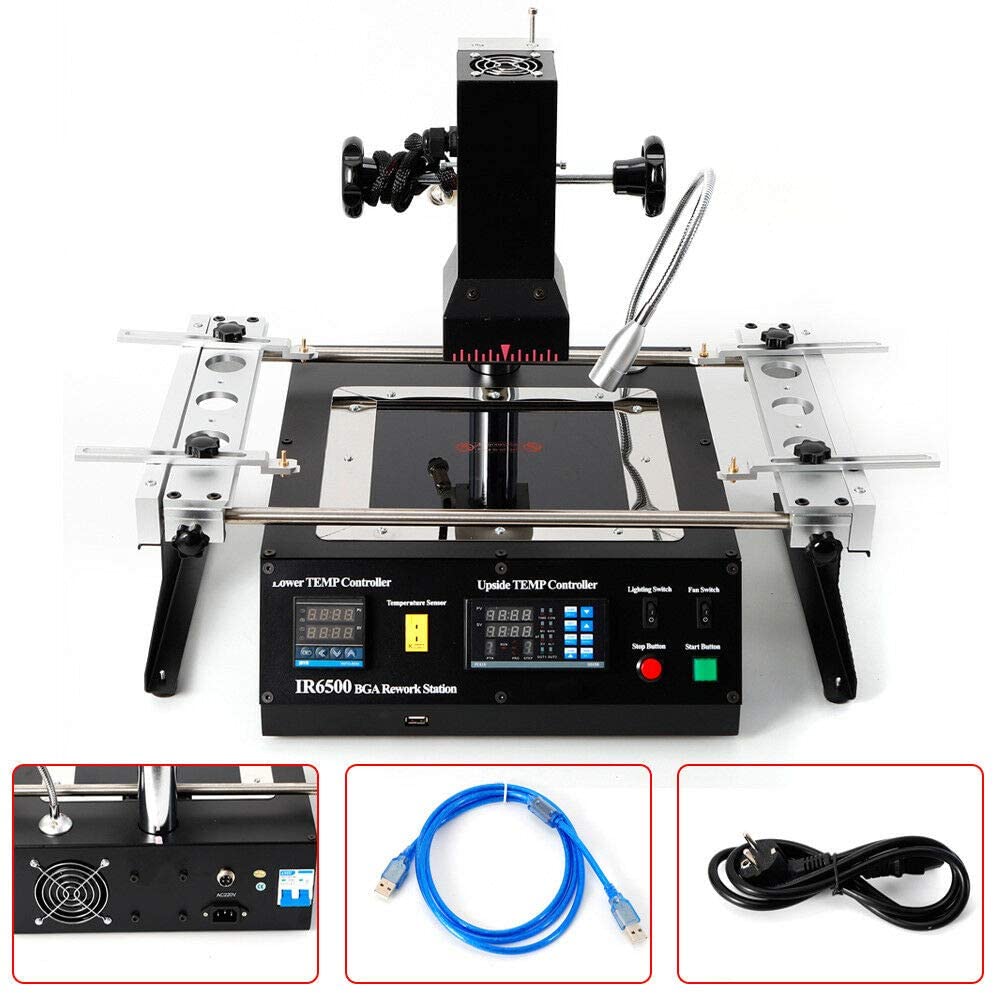

Introduction Heating:IR Dimension:L475mmx W480mmx H420mm Weight:15kg Total weight:About 17 kg, vary with the differen need of the users Electrical Parameters Power:110V AC (The country with the 110V voltage need to buy the voltage converter to use the item) Upper Heating:IR Size of Upper heating:80mm x 80mm Consumption of upper heating:400W Bottom Heating:IR Size of Bottom heating:180mm x180mm Consumption of Bottom heating:800W General power:1250W Temperature Control Control mode of Upper: Independent temperature control, high-precision closed-loop control, precision ± 0.5% Control mode of Bottom: Independent temperature control, high-precision closed-loop control, precision ± 0.5%, NO Alarm Rework Function SMD:Suit for welding, remove or repair packaged devices such as BGA,PBGA,CSP,multi-layer substrates, EMI metallic shield product and solder/lead free Reworkwelding Size of applicable chips:=70mm x70 mm Size of applicable PCB:=400mm x305mm
Make sure this fitsby entering your model number.
?INNOVATIVE DESIGN & EASILY REWORK?IR6500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow, will lead an inaccurate of temperature control can easily deal with lead-free soldering rework. It can easily rework the variety of CPU’s seat, all kinds of shielding enclosures, replacement of various components slot can easily deal with lead-free soldering rework.
