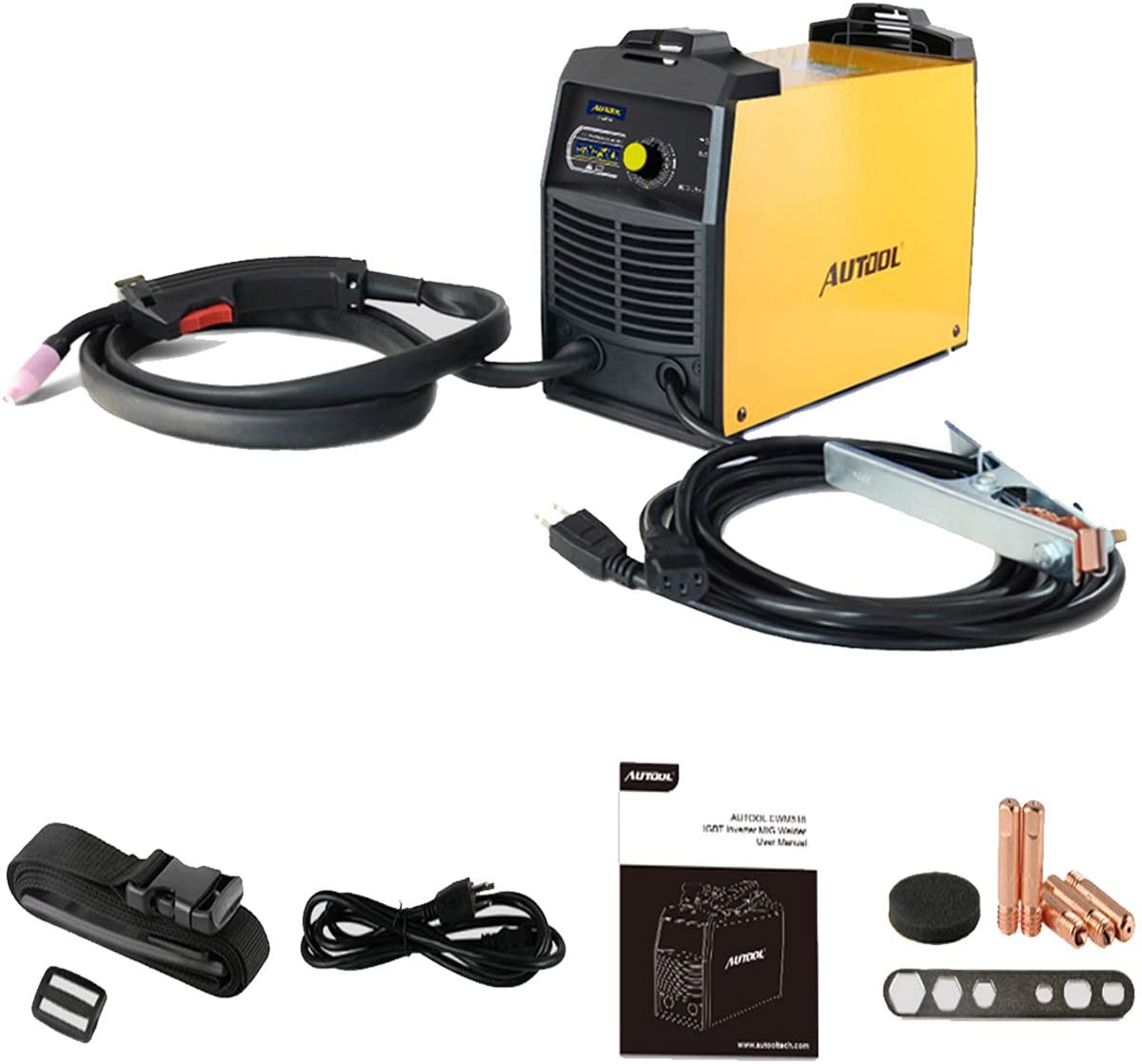

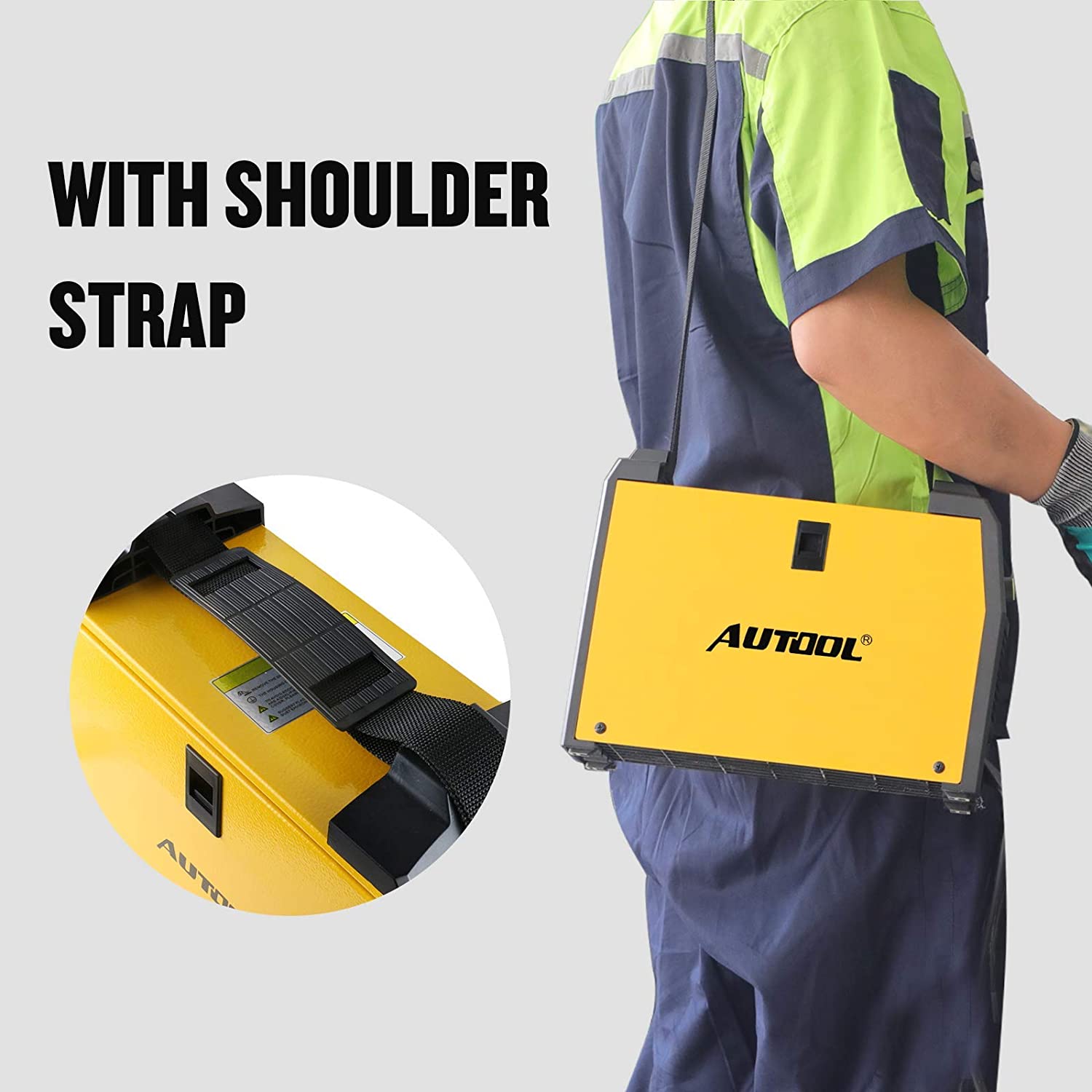

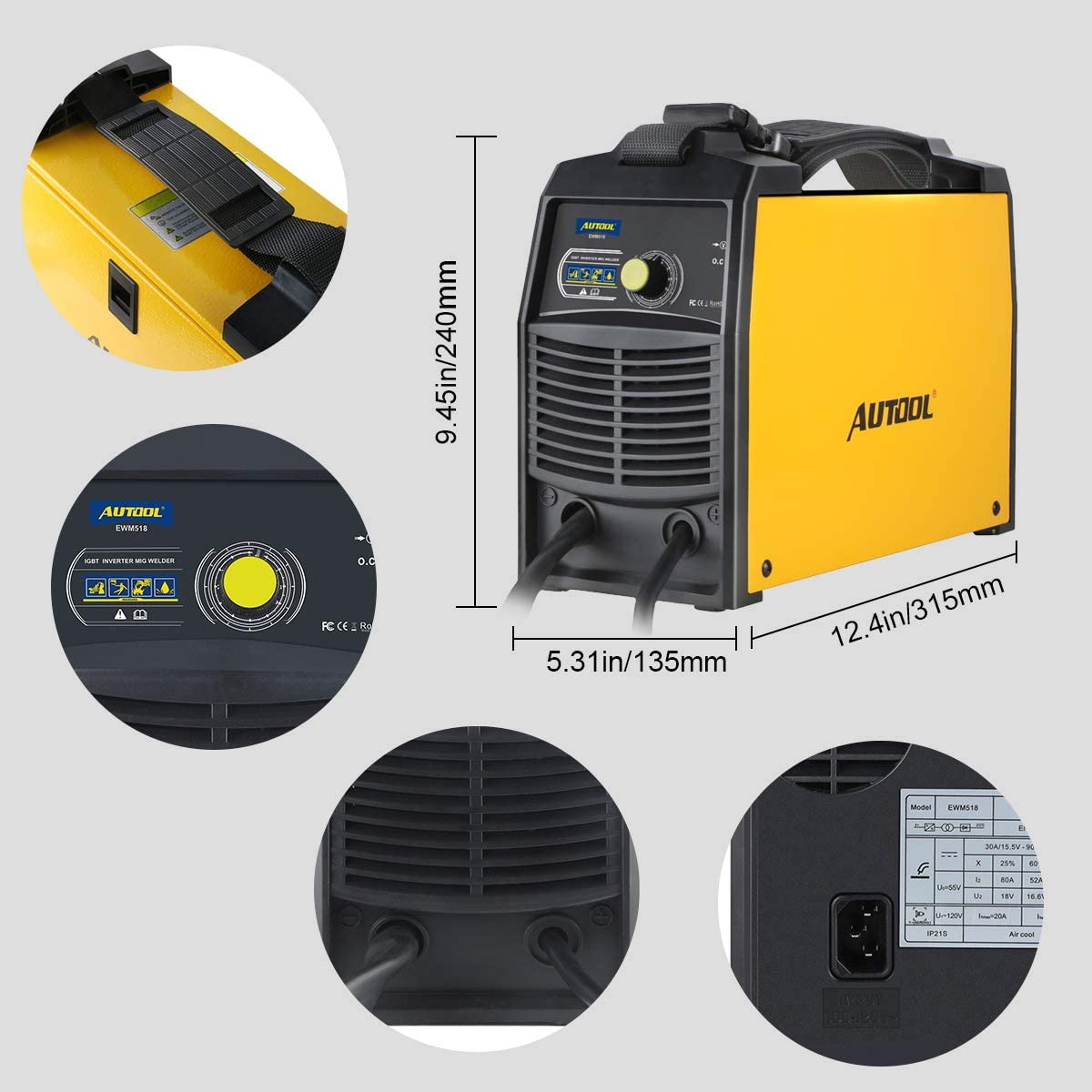

AUTOOL EWM518 welding machine applies the most advanced inversion technology,no gas MIG welder, IGBT inverter automatic feed flux core wire welding machine Product Features 1.Uses convenient flux-cored wire to self-release metal inert gas while welding, preventing oxidation of the welded part,and has the adjustable welding current. 2.This welding equipment is of high-efficiency;power-saving,etc. It is especially suitable for home usage and demand of different metal or techniques. 3..Portable design flux-cored welding machine-light and compact design; equipped with comfortable shoulder strap and handle, so that you can easily carry around Technical parameters: Item EWM518 Power supply(V) 1 phases 120V±15% Frequency(Hz) 50/60 No-load voltage(V) 55 Rated input current(A) 20 Output current adjustment range(A) 30 – 90 Output voltage(V) 15.5 – 18.5 Duty cycle 25% Power factor >0.7 Efficiency(%) =80 Type of the wire feeder Internal Welding-wire diameter (mm) 0.8 Insulation grade F Protection grade IP21S Weight without wire roller(kg) 5.5 Dimension (L*W*H mm) 360*135*240 package : 1*EWM518 Welder 1*Product manual 1*Flux cored wire and accessories 1*Shoulder strap Warranty: There are 3 years’ warranty for AUTOOL product main unit and 1 year warranty for the accessories since the day the customers have received the product parcel.
Make sure this fitsby entering your model number.
The Autool EWM518 welding machine applies the most advanced inversion technology.The principle of inversion is to transform the power frequency of 50Hz/ 60Hz into direct currentand invert it into high frequency through high-power device IGBT, then perform voltage-drop and commutation with the output high-power D.C power supply via Pulse Width Modulation (PWM).
