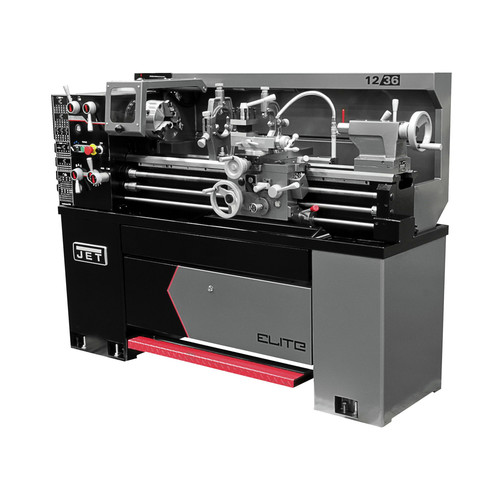

JET 892300 E-1236VS with Taper Attachment

EVS LATHES – COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite! Features: Electromagnetic assisted foot brake for rapid braking Inverter drive system provides infinitely variable spindle speeds Steady and follow rest feature double sealed ball bearing guides for smooth material movements Chuck guards are standard equipment on all ELITE lathes for increased safety Front facing chip pan allows easy chip removal from the front of the machine 1-9/16 in. Spindle Bore Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM Hardened and ground gears in headstock reduce vibration and deflection Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004 Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant Includes: E-1236VS with Taper Attachment – 892300 Downloads: Diagram
